Hyundai Palisade: Limitations of the System / Detecting vehicles

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Driving Your Vehicle / Forward Collision-Avoidance Assist (FCA) system / Limitations of the System / Detecting vehicles

The sensor may be limited when:

  • The system may not operate for 15 seconds after the engine is started or the camera is initialized
  • The radar sensor or camera is covered with a foreign object or debris
  • The camera lens is contaminated due to tinted, filmed or coated windshield, damaged glass, or stuck of foreign matter (sticker, bug, etc.) on the glass
  • Inclement weather such as heavy rain or snow obscures the field of view of the radar sensor or camera
  • There is interference by electromagnetic waves
  • There is severe irregular reflection from the radar sensor
  • The radar/camera sensor recognition is limited
  • The vehicle in front is too small to be detected (for example a motorcycle or a bicycle, etc.)
  • The vehicle in front is an oversize vehicle or trailer that is too big to be detected by the camera recognition system (for example a tractor trailer, etc.)
  • The camera's field of view is not well illuminated (either too dark or too much reflection or too much backlight that obscures the field of view)
  • The vehicle in front does not have their rear lights properly turned ON or their rear lights are located unusually
  • The outside brightness changes suddenly, for example when entering or exiting a tunnel
  • Light coming from a street light or an oncoming vehicle is reflected on a wet road surface such as a puddle in the road
  • The field of view in front is obstructed by sun glare
  • The windshield glass is fogged up; a clear view of the road is obstructed
  • The vehicle in front is driving erratically
  • The vehicle is on unpaved or uneven rough surfaces, or road with sudden gradient changes
  • The vehicle is driven near areas containing metal substances as a construction zone, railroad, etc.
  • The vehicle drives inside a building, such as a basement parking lot
  • The camera does not recognize the entire vehicle in front
  • The camera is damaged
  • The brightness outside is too low such as when the headlamps are not on at night or the vehicle is going through a tunnel
  • The shadow is on the road by a median strip, trees, etc.
  • The vehicle drives through a tollgate.
  • The rear part of the vehicle in front is not normally visible (the vehicle turns in other direction or the vehicle is overturned.)
  • The adverse road conditions cause excessive vehicle vibrations while driving
  • The sensor recognition changes suddenly when passing over a speed bump
  • The vehicle in front is moving vertically to the driving direction
  • The vehicle in front is stopped vertically
  • The vehicle in front is driving towards your vehicle or reversing
  • You are on a roundabout and the vehicle in front circles

Hyundai Palisade. Detecting vehicles

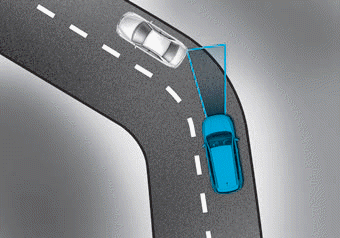

• Driving on a curve

The performance of the FCA system may be limited when driving on a curved road.

In certain instances on a curved road, the FCA system may activate prematurely.

Also, in certain instances the front radar sensor or camera recognition system may not detect the vehicle traveling on a curved road.

In these cases, the driver must maintain a safe braking distance, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

Hyundai Palisade. Detecting vehicles

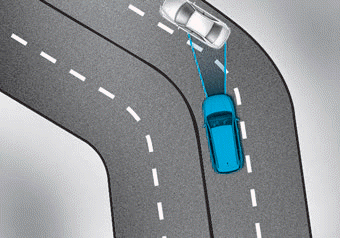

The FCA system may recognize a vehicle in the next lane when driving on a curved road.

In this case, the system may unnecessarily alarm the driver and apply the brake.

Always pay attention to road and driving conditions, while driving. If necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

Also, when necessary depress the accelerator pedal to prevent the system from unnecessarily decelerating your vehicle.

Hyundai Palisade. Detecting vehicles

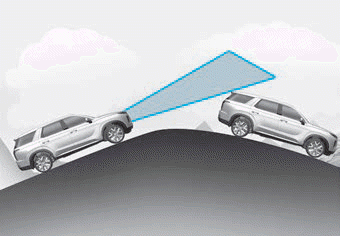

• Driving on a slope

The performance of the FCA decreases while driving upward or downward on a slope, not recognizing the vehicle in front in the same lane. It may unnecessarily produce the warning message and the warning alarm, or it may not produce the warning message and the warning alarm at all.

When the FCA suddenly recognizes the vehicle in front while passing over a slope, you may experience sharp deceleration.

Always keep your eyes forward while driving upward or downward on a slope, and, if necessary, depress the brake pedal to reduce your driving speed in order to maintain distance.

Hyundai Palisade. Detecting vehicles

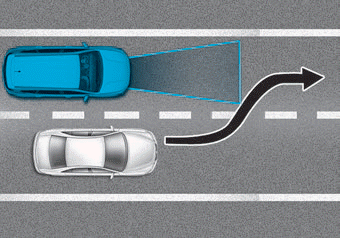

• Changing lanes

When a vehicle changes lanes in front of you, the FCA system may not immediately detect the vehicle, especially if the vehicle changes lanes abruptly. In this case, you must maintain a safe braking distance, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

Hyundai Palisade. Detecting vehicles

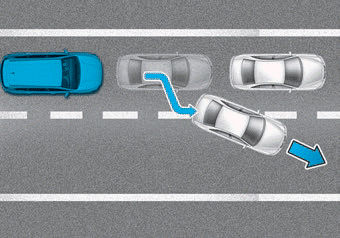

When driving in stop-and-go traffic, and a vehicle in front of you merges out of the lane, the FCA system may not immediately detect the new vehicle that is now in front of you. In this case, you must maintain a safe braking distance, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

Hyundai Palisade. Detecting vehicles

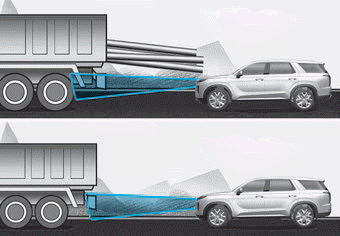

• Detecting the vehicle in front of you

If the vehicle in front of you has cargo that extends rearward from the cab, or when the vehicle in front of you has higher ground clearance, additional special attention is required. The FCA system may not be able to detect the cargo extending from the vehicle. In these instances, you must maintain a safe braking distance from the rearmost object, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain distance.
