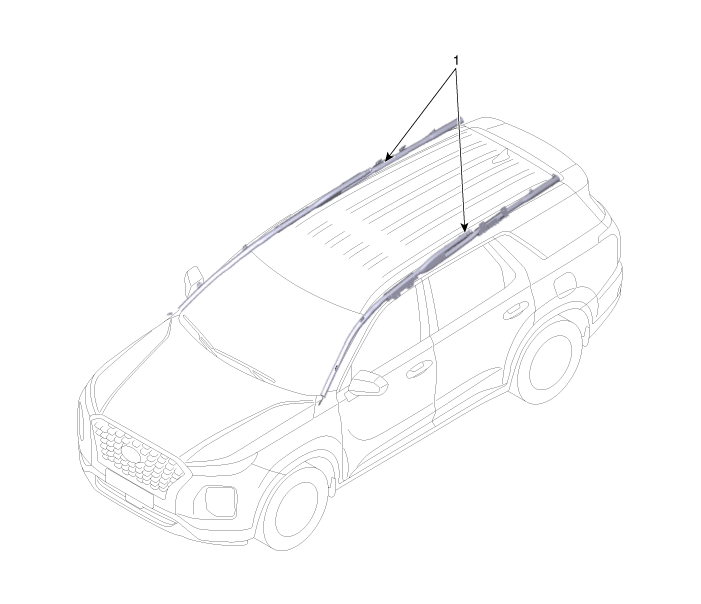

1. Curtain Airbag (CAB)

Repair procedures

Removal

1.	Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.

2.	Remove the roof trim assembly. (Refer to Body - "Roof Trim Assembly")

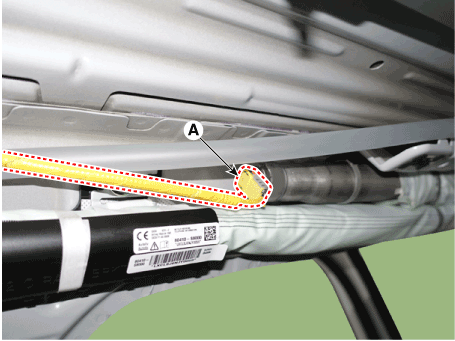

3.	Disconnect the curtain airbag connector (A).

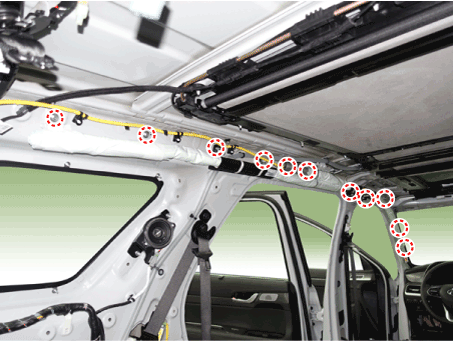

4.	After loosening the mounting bolts & nuts remove the curtain airbag.

Installation

1.	Turn the ignition switch OFF.

2.	Disconnect the battery negative cable and wait for at least three minutes.

Tighten the curtain airbag mounting bolts.

Tightening torque

Bolts : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Nuts : 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

•	Never twist the airbag module when installing it. If the module is twisted, the airbag module may operate abnormally.

4.	Connect the curtain airbag connector.

5.	Install the roof trim assembly. (Refer to Body - "Roof Trim Assembly")

6.	Reconnect the battery negative cable.

7.	After installing the curtain airbag (CAB), confirm proper system operation: Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off.
