Hyundai Palisade: Roof Trim / Components and components location

Roof Trim

..

Sunvisor

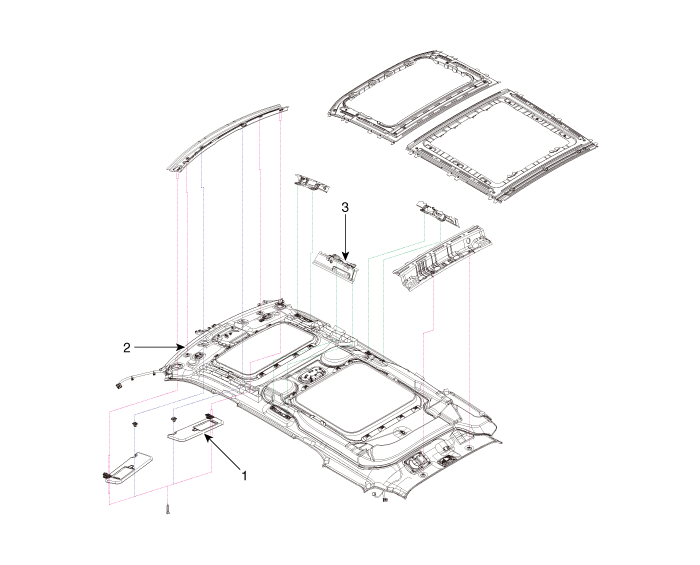

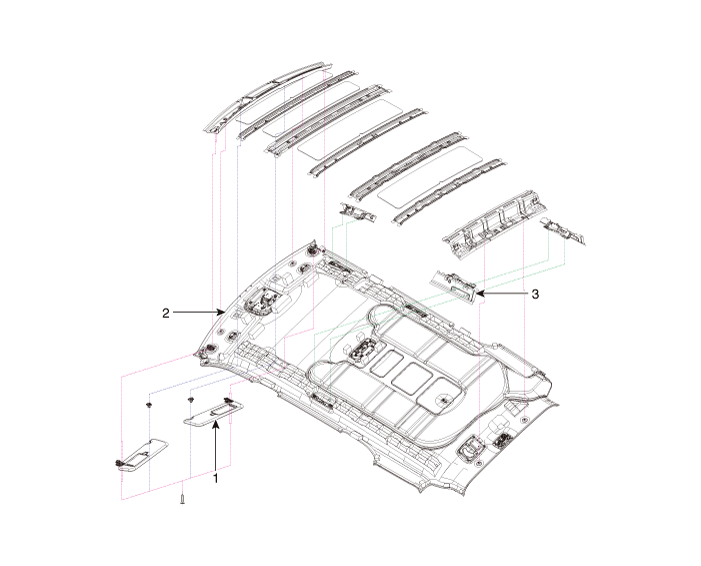

Components and components location Component Location 1. Sunvisor 2. Retainer Repair procedures Replacement    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
