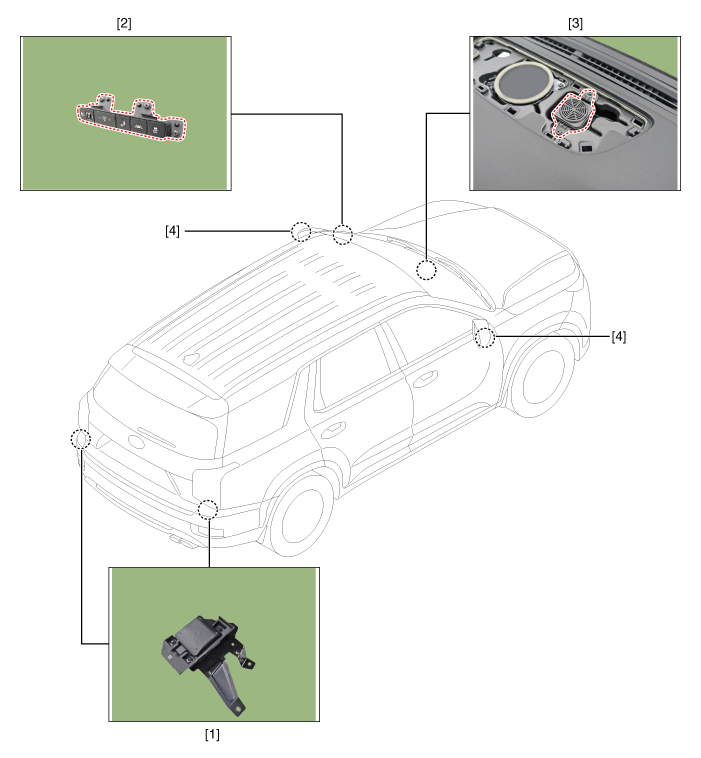

Hyundai Palisade: Rear Corner Radar System / Components and components location

Rear Corner Radar System

..

Description and operation

Description Blind-Spot Radar is a system that measures the relative speed and distance from the following vehicles by using two electromagnetic wave radar sensors attached to the rear bumper, and detects any vehicle within the blind spot zone and gives off alarm (visual and auditory)...
