Hyundai Palisade: Rear Door / Rear Door Side Weatherstrip

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Side Weatherstrip

Repair procedures
Replacement
[Rear door side weatherstrip]
1.

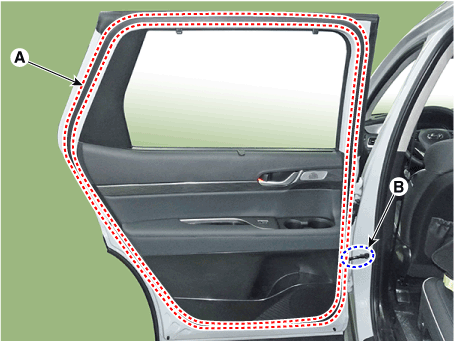

Loosen the rear door checker (B) mounting bolt.
Tightening torque :
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m,15.9 - 23.9 lb-ft)
2.
Detach the clips, then remove the rear door side weatherstrip (A).

Hyundai Palisade. Repair procedures

3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Replace any damaged clips (or pin-type retainers).
[Rear door body side weatherstrip]
4.

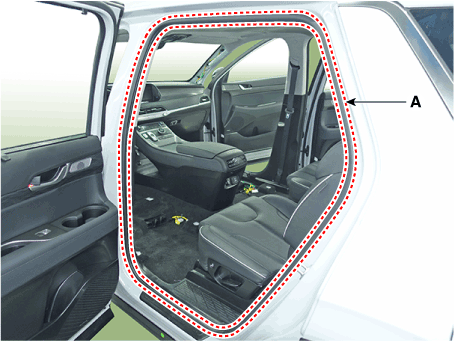

Detach the clips, then remove the rear door body side weatherstrip (A).

Hyundai Palisade. Repair procedures

5.
To install, reverse removal procedure.
