Hyundai Palisade: Exhaust Emission Control System / Catalytic Converter

Hyundai Palisade (LX2) 2020-2025 Service Manual / Emission Control System / Exhaust Emission Control System / Catalytic Converter

Description and operation
Description
The catalytic converter of the gasoline engine is a three way catalyst. It oxidizes carbon monoxide and hydrocarbons (HC), and separates oxygen from the oxides of nitrogen (NOx).

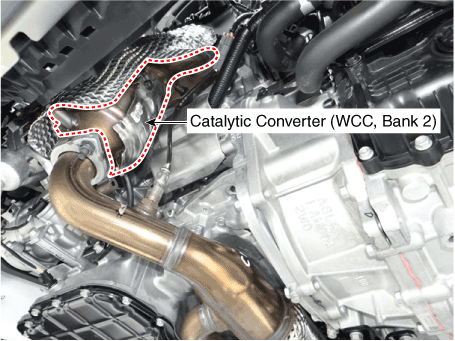

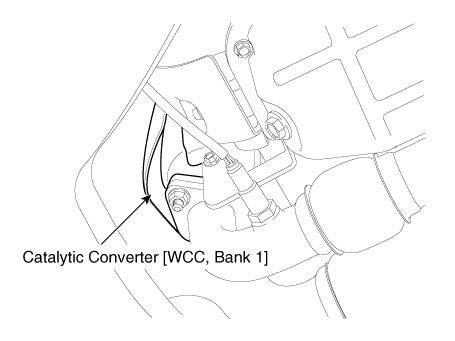

Catalytic Converter (WCC)

Hyundai Palisade. Description and operation

Hyundai Palisade. Description and operation

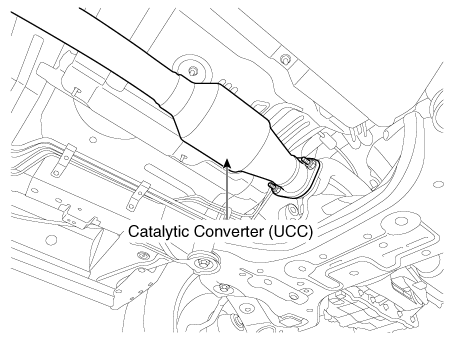

Catalytic Converter (UCC)

Hyundai Palisade. Description and operation

Repair procedures
Removal
Catalytic Converter (WCC)
Refer to Engine Mechanical System - "Exhaust Manifold"
Catalytic Converter (UCC)
Refer to Engine Mechanical System - "Muffler"
Installation
Catalytic Converter (WCC)
Refer to Engine Mechanical System - "Exhaust Manifold"
Catalytic Converter (UCC)
Refer to Engine Mechanical System - "Muffler"
