Hyundai Palisade: Power Windows / Automatic reverse

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Convenient Features of Your Vehicle / Windows / Power Windows / Automatic reverse

Hyundai Palisade. Automatic reverse

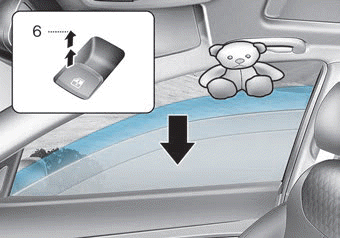

If a window senses any obstacle while it is closing automatically, it will stop and lower approximately 12 inches (30 cm) to allow the object to be cleared.

If the window detects the resistance while the power window switch is pulled up continuously, the window will stop upward movement then lower approximately 1 inch (2.5 cm).

If the power window switch is pulled up continuously again within 5 seconds after the window is lowered by the automatic window reverse feature, the automatic window reverse will not operate.

Information

The automatic reverse feature is only active when the "Auto Up" feature is used by fully pulling up the switch to the second detent.

WARNING

Make sure body parts or other objects are safely out of the way before closing the windows to avoid injuries or vehicle damage.

Objects less than 0.16 inch (4 mm) in diameter caught between the window glass and the upper window channel may not be detected by the automatic reverse window and the window will not stop and reverse direction.

NOTICE

Do not install any accessories on the windows.The automatic reverse feature may not operate.

    Power Windows

    The ignition switch must be in the ON position to be able to raise or lower the windows. Each door has a Power Window switch to control that door’s window...

    Power window lock switch

    The driver can disable the power window switches on the rear passenger doors by pressing the power window lock switch. When the power window lock switch is pressed: The rear passenger control will not be able to operate the rear passenger power window Note that the front passenger control is still able to operate the front passenger window, and that the driver master control can still operate all the power windows...
