Hyundai Palisade (LX2): Convenient Features of Your Vehicle / Windows

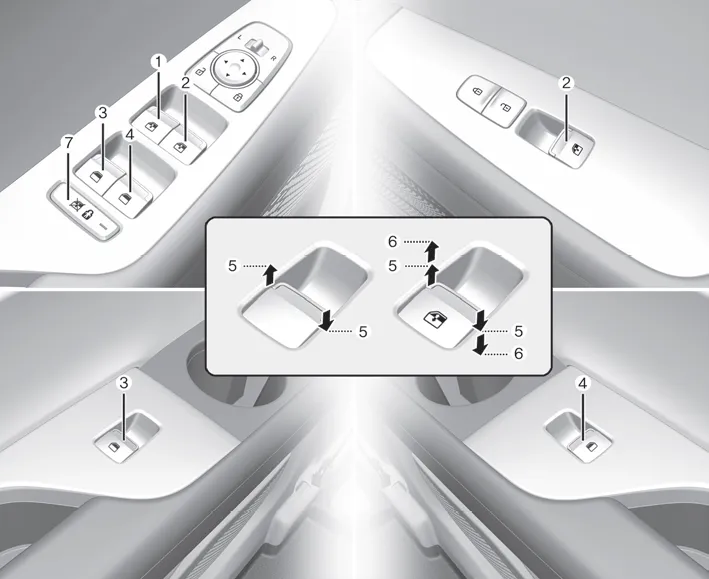

(1) Driver's door power window
switch
(2) Front passenger's door power
window switch
(3) Rear door (left) power window
switch
(4) Rear door (right) power window
switch
(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
When you move the shift button to the R (Reverse) position, the side view mirror(s) will rotate downwards to aid with driving in reverse. The position of the side view mirror switch (1) determines whether or not the mirrors will move: Left/Right : When either the L (Left) or R (Right) switch is selected, both side view mirrors will move.
The ignition switch must be in the ON position to be able to raise or lower the windows. Each door has a Power Window switch to control that door’s window.
