Hyundai Palisade: Roof Trim / Assist Handle

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Roof Trim / Assist Handle

Components and components location

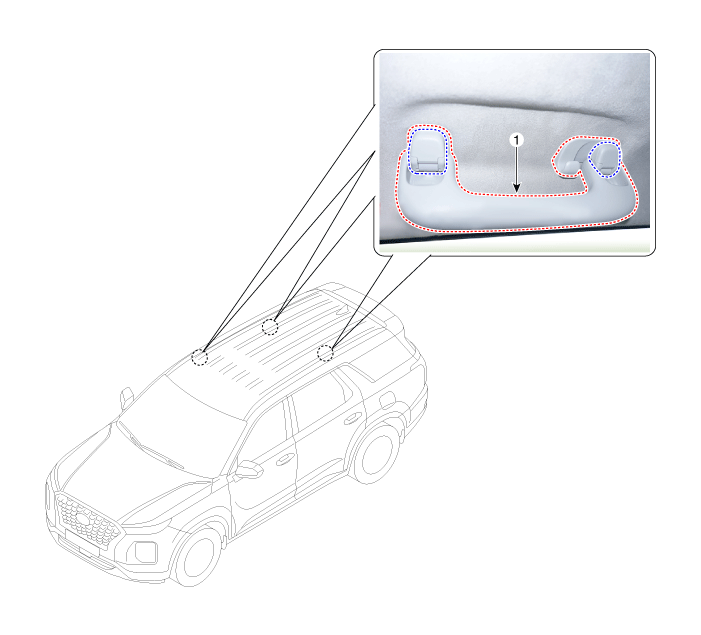

Component Location

Hyundai Palisade. Components and components location

1. Assist handle


Repair procedures
Replacement
Hyundai Palisade. Repair procedures
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
Take care not to bend or scratch the trim and panels.
1.

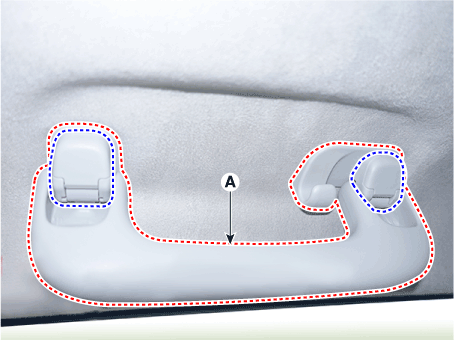

After lifting up the assist handle caps and loosening the mounting screws, remove the assist handle (A).

Hyundai Palisade. Repair procedures

2.
To install, reverse removal procedure.
