Hyundai Palisade (LX2): Roof Trim / Roof Trim Assembly

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Roof Trim / Roof Trim Assembly

Components and components location

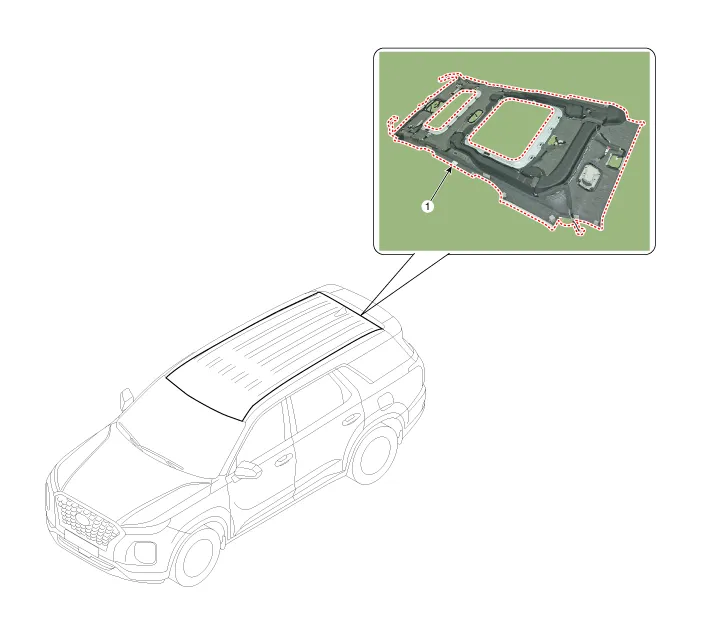

Component Location

Hyundai Palisade. Components and components location

1. Roof Trim Assembly

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the front seat. (Refer to Front Seat - "Front Seat Assembly")

2.	Remove the rear seat. (Refer to Rear Seat - "Rear Seat Assembly")

3.	Remove the front pillar trim. (Rear to Interior Trim - "Front Pillar Trim")

4.	Remove the center pillar upper trim. (Rear to Interior Trim - "Center Pillar Trim")

5.	Remove the rear pillar trim. (Rear to Interior Trim - "Rear Pillar Trim")

6.	Remove the sunvisor and retainer. (Rear to Roof Trim - "Sunvisor")

7.	Remove the assist handle. (Rear to Roof Trim - "Assist Handle")

8.	Remove the overhead console lamp. (Rear to Body Electrical System - "Overhead Console Lamp")

9.	Remove the room lamp. (Rear to Body Electrical System - "Room Lamp")

10.	Remove the ECM mirror connector. (Refer to Body Electrical System - "Electro Chromic Inside Rear View Mirror")

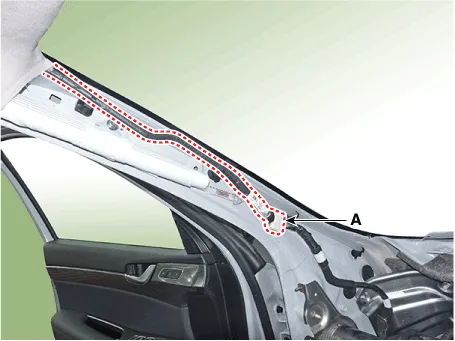

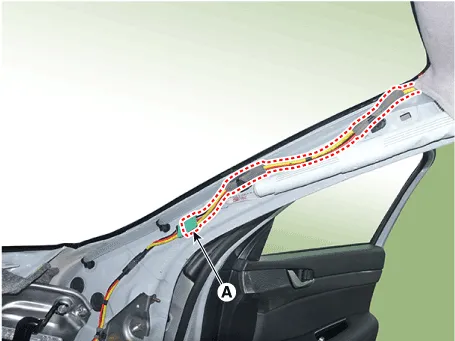

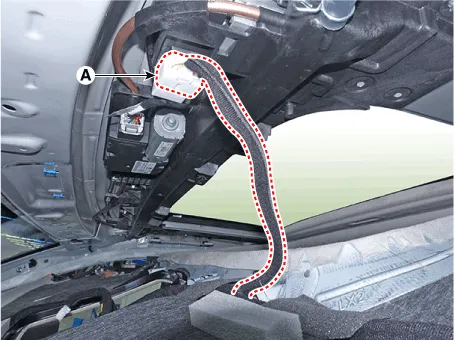

11.	Separate the roof trim main connector (A) from the front pillar section. [LH] [RH]

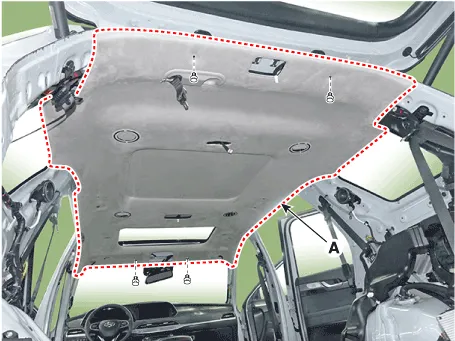

12.	Remove the roof trim mounting clip and remove the roof trim assembly (A).

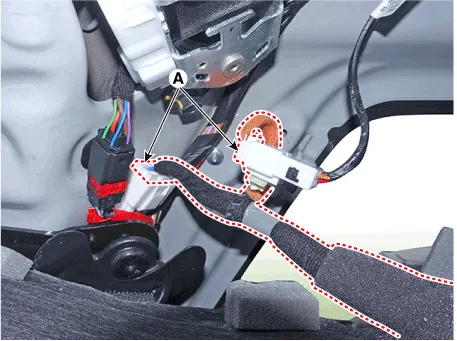

13.	Separate the roof trim various connector (A). [Front] [Center] [Rear]

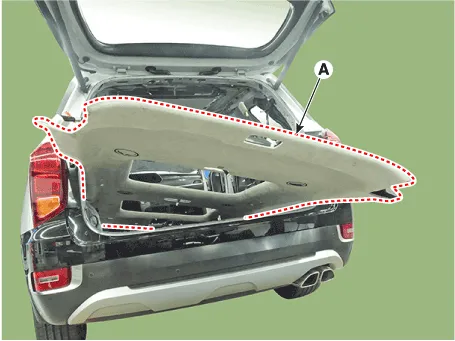

14.	Remove the roof trim assembly (A) from the vehicle through the tailgate.

15.

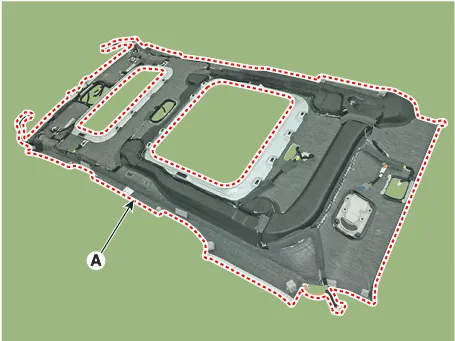

Remove roof trim wiring harness from the roof trim (A).

•	Take care not to damage the roof trim wiring harness when removing.

Hyundai Palisade. Repair procedures

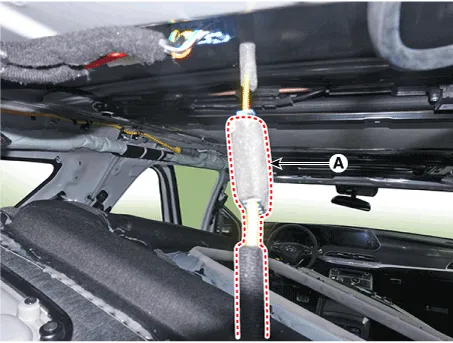

1)	When installing the roof trim wiring harness on the roof trim, apply the hot melt continuously by using the hot melt gun tool.

2)	Put anti-noise pad on roof trim to prevent the noise.

16.

To install, reverse removal procedure.

•	Make sure the connector is connected in properly.

•	Replace any damaged clips.
