Hyundai Palisade: Rear Seats / Armrest, Rear occupant alert system
Armrest (2nd row, 8 passengers
vehicle)
![Hyundai Palisade. Armrest, Rear occupant alert system](images/armrest_rear_occupant_alert_system-21/1/hyundai_palisade_armrest_rear_occupant_alert_system_31.png)

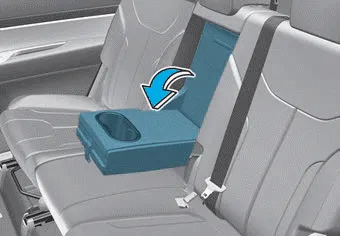

The armrest is located in the center
of the rear seat. Use the strap in the
center of the armrest to pull it down.
Armrest (2nd row, 7 passengers
vehicle)
![Hyundai Palisade. Armrest, Rear occupant alert system](images/armrest_rear_occupant_alert_system-21/1/hyundai_palisade_armrest_rear_occupant_alert_system_32.png)

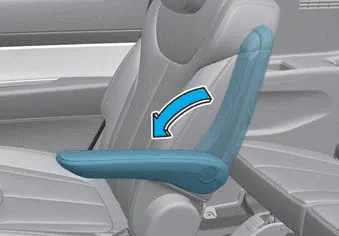

Pull the armrest down from the seatback
to use it.
Rear occupant alert system
(if equipped)
This function alerts the driver when
exiting the vehicle to check the 2nd
row seat.
If the rear doors are open prior to
driving the vehicle, after driving when
the vehicle is turned off, a warning
message appears in the cluster to
give a first warning. If the movement
is detected in the 2nd row seat after
you lock all doors, a second warning
alerts you.
Make sure to check for passengers
in the 2nd row seat before you get
out.
While folding or unfolding the 3rd row
seat, when a consistent force is
detected, the seat returns to its original
position or stops operation.
However, this function may not work
when the detected resistance is
below a specific level or the seat is
almost folded or unfolded...
The vehicle's front and rear seats
have adjustable head restraints. The
head restraints provide comfort for
passengers, but more importantly
they are designed to help protect
passengers from whiplash and other
neck and spinal injuries during an
accident, especially in a rear impact
collision...
Other information:
The Rear Occupant Alert (ROA) system
is provided to help prevent exiting
the vehicle with the rear passenger
left in the vehicle.
• 1st alert
- When you open the front door
after opening and closing the rear
door and turning off the engine,
the "Check rear seats" warning
message appears on the cluster...
Components and components location
Components
Connector Pin Information
No
Connector A
Connector B
1
Battery (+)
Rear left door speaker (+)
2
Battery (+)
Rear left door speaker (-)
3
Battery (+)
Rear right door speaker (+)
4
Battery (+)
Rear right door speaker (-)
5
-
-
6
M-CAN (High)
-
7
M-CAN (Low)
-
8
ACC
-
9
Navigation voice (+)
-
10
-
-
11
-
-
12
Front left door speaker (+)
-
13
Front left door speaker (-)
Surround left speaker (+)
14
Front right door speaker (+)
Surround left speaker (-)
15
Front right door speaker (-)
Surround right speaker (+)
16
Ground
Surround right speaker (-)
17
Ground
Sub woofer speaker1 (+)
18
Ground
Sub woofer speaker1 (-)
19
Ground
Sub woofer speaker2 (+)
20
SPDIF (+)
Sub woofer speaker2 (-)
21
SPDIF (-)
-
22
SPDIF ground
-
23
Navigation voice (-)
-
24
IGN 1
25
Front left tweeter speaker (+)
-
26
Front left tweeter speaker (-)
-
27
Front right tweeter speaker (+)
Center speaker (+)
28
Front right tweeter speaker (-)
Center speake (-)
Repair procedures
Removal
External Amplifier
