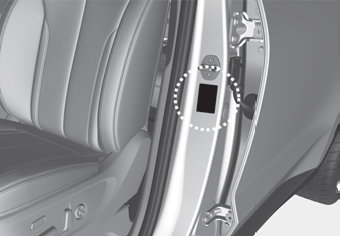

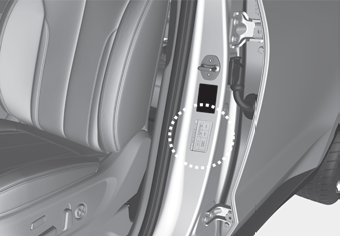

Hyundai Palisade: Specifications, Consumer Information and Reporting Safety Defects / Vehicle Ccertification Label, Tire Specification and Pressure Label, Engine Number, Refrigerant Label

Vehicle Identification Number (VIN)

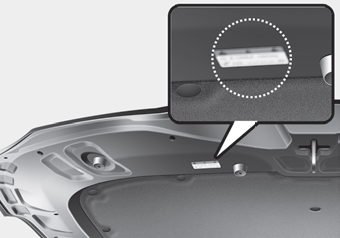

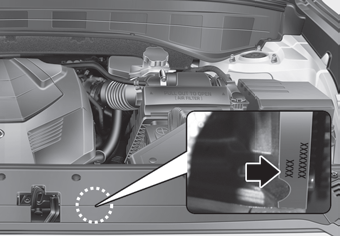

The vehicle identification number (VIN) is the number used in registering your car and in all legal matters pertaining to its ownership, etc. The number is punched on the engine compartment frame and back side of the engine...

Hyundai Palisade (LX2) 2020-2024 Service Manual

ServiceManual for first generation Hyundai Palisade, a mid-size crossover SUV manufactured by Hyundai Motor Company since late 2018. Powering all Palisade models in the United States and Canada is a 3...

Other information:

Hyundai Palisade (LX2) 2020-2024 Owner's Manual: Winter Driving

The severe weather conditions of winter quickly wear out tires and cause other problems. To minimize winter driving problems, you should take the following suggestions: Snow or Icy Conditions You need to keep sufficient distance between your vehicle and the vehicle in front of you...

Hyundai Palisade (LX2) 2020-2024 Service Manual: Heater & A/C Control Unit (DATC)

Components and components location Component Connector Pin Function Connector PIN No Pin Function Connector PIN No Pin Function A 1 Battery A 21 IGN2 2 ISG B+ 22 IGN1 3 ILL+ (TAIL) 23 Blower Motor (+) 4 Sensor Ground REF (+5V) 24 Photo Sensor (-)_LEFT 5 Mode Control Actuator Feedback 25 Photo Sensor (-)_RIGHT 6 Temperature Actuator Feedback - Driver 26 Incar Sensor (+) 7 Intake Actuator Feedback 27 Incar Motor (-) 8 Evaporator Temperature Sensor (+) 28 PTC Relay 3 9 Ambient Temperature Sensor (+) 29 PTC Relay 3 10 Mode Control Actuator (Vent) 30 PTC On Signal 11 Mode Control Actuator (Defrost) 31 Detent out (-) 12 Temperature Control Actuator (Cool) - Driver 32 K - Line 13 Temperature Control Actuator (Warm) - Driver 33 P_CAN High 14 Intake Actuator (Fresh Air) 34 P_CAN Low 15 Intake Actuator (Recirculated Air) 35 Mosfet (DRAIN F/B) 16 HTD (Rear Defrost) 36 Mosfet (GATE) 17 Rear Defogging Swich 37 ECV + 18 Clean Signal 38 ECV - 19 Ionizer Diagnosis 39 Sensor Ground 20 ILL - (RHEO) 40 Ground Connector PIN No Pin Function Connector PIN No Pin Function B 1 Temperature Control Actuator Feedback - Passenger B 9 - 2 Temperature Control Actuator (Cool) - Passenger 10 - 3 Temperature Control Actuator (Warm) - Passenger 11 - 4 Defogging Actuator Feedback 12 Defogging Sensor TEMP 5 Defogging Actuator (Open) 13 Defogging Sensor SCK 6 Defogging Actuator (Close) 14 Defogging Sensor Data 7 - 15 - 8 Seat Signal PWM - Driver 16 Ground Repair procedures Self Diagnosis 1...
