Hyundai Palisade: Rear Axle Assembly / Rear Hub - Carrier

Hyundai Palisade (LX2) 2020-2024 Service Manual / Driveshaft and axle / Rear Axle Assembly / Rear Hub - Carrier

Components and components location

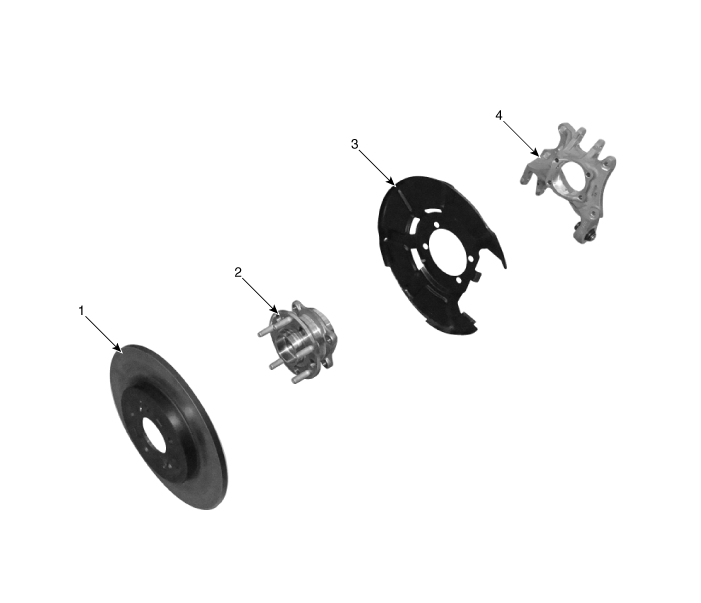

Components

Hyundai Palisade. Components and components location

1. Rear brake disc
2. Rear hub assembly
3. Dust cover
4. Rear carrier assembly

Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

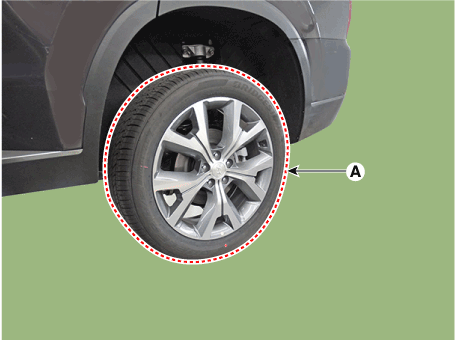

Remove the rear wheel and tire (A) from rear hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Hyundai Palisade. Repair procedures
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

Hyundai Palisade. Repair procedures

3.
Remove the rear brake caliper.
(Refer to Brake System - "Rear Disc Brake")
4.

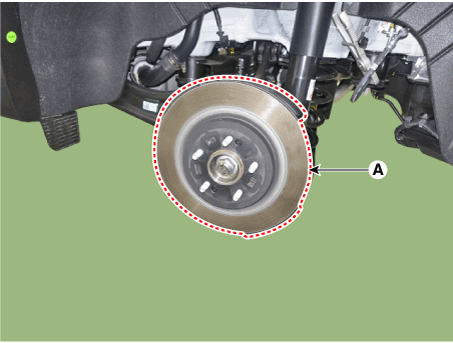

Loosen the screw and then removing the rear brake disc (A).
Tightening torque :
4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

Hyundai Palisade. Repair procedures

5.

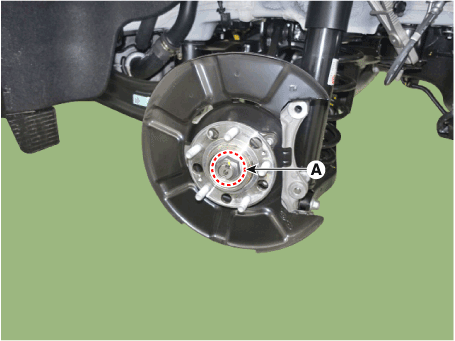

Loosen the driveshaft caulking nut (A).
Tightening torque :
294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb-ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
The driveshaft lock nut (A) should be replaced with new ones.

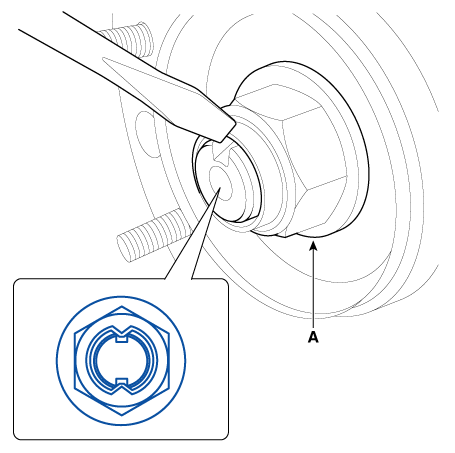

After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.
Caulking depth : 1.5 mm (0.591 in.)

Hyundai Palisade. Repair procedures

6.

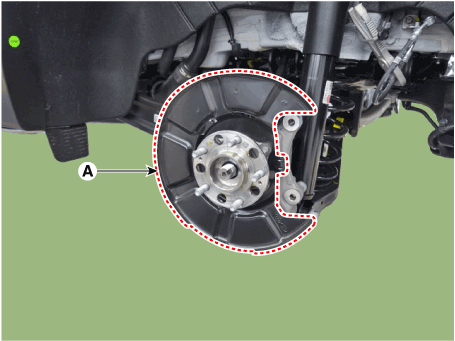

Loosen the bolts and then removing the rear hub assembly and duct cover (A).
Tightening torque :
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Hyundai Palisade. Repair procedures

7.

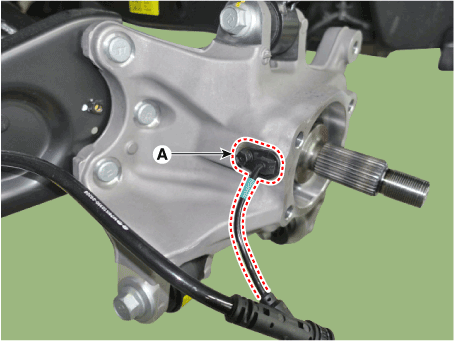

Loosen the bolt and then removing the wheel speed sensor (A).
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb-ft)

Hyundai Palisade. Repair procedures

8.

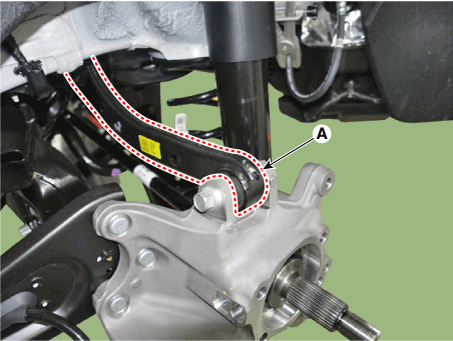

Loosen the nut and bolt and then removing the rear upper arm (A) from the axle.
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Hyundai Palisade. Repair procedures

9.

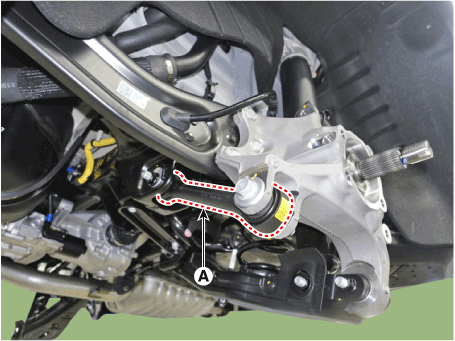

Loosen the bolt and nut and then separate the rear assist arm (A) from the rear axle.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

Hyundai Palisade. Repair procedures

10.

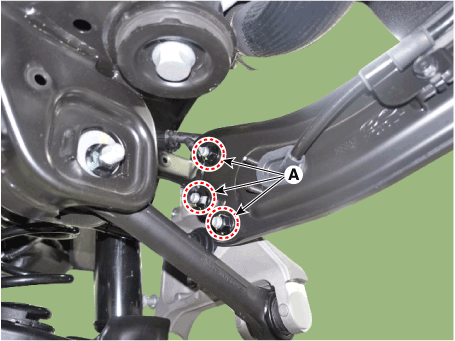

Loosen the mounting nut (A) and then separate the trailing arm from the rear carrier assembly.
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Hyundai Palisade. Repair procedures

11.

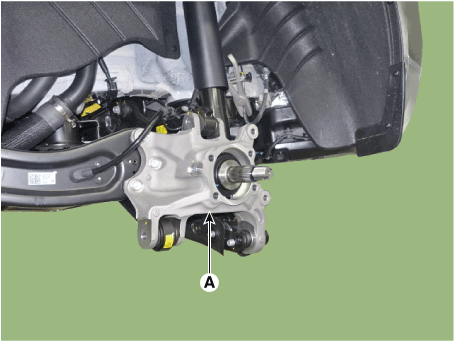

Remove the rear axle carrier (A) after loosening the bolt and nut.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

Hyundai Palisade. Repair procedures

Inspection
1.
Check the hub for cracks and the splines for wear.
2.
Check the rear axle carrier for cracks.
Installation
1.
Install in the reverse order of removal.
2.
Check the alignment.
(Refer to Suspension System - "Alingment")
