| Removal and Installation |
|
|
|
| 1. |
Disconnect the battery negative terminal.
|
| 2. |
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Engine Cover")
|
| 3. |
Remove the air duct.
(Refer to Intake and Exhaust System - "Air Cleaner")
|
| 4. |
Disconnect the battery positive terminal.
|
| 5. |
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
|
| 6. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 7. |
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
|
| 8. |
Drain the engine coolant.
(Refer to Cooling System - "Coolant")
|
| 9. |

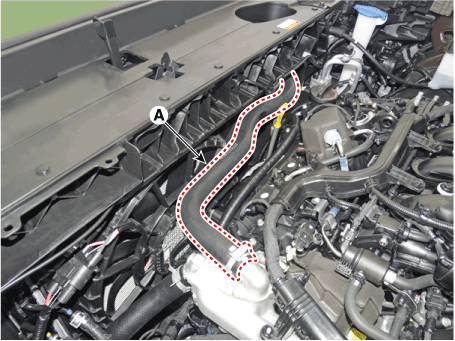

Disconnect the radiator upper hose (A).
|
| 10. |

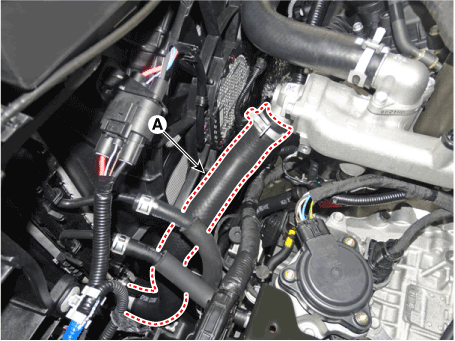

Disconnect the radiator lower hose (A).
|
| 11. |

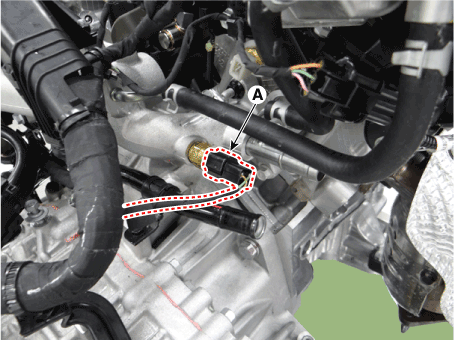

Disconnect the water temperature sensor connector (A).
|
| 12. |

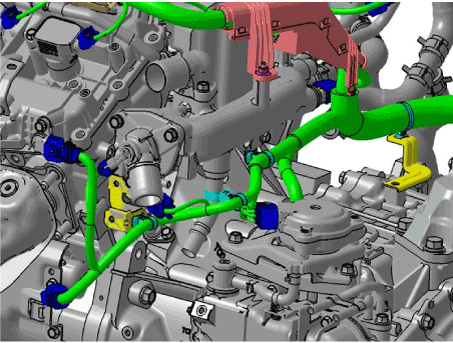

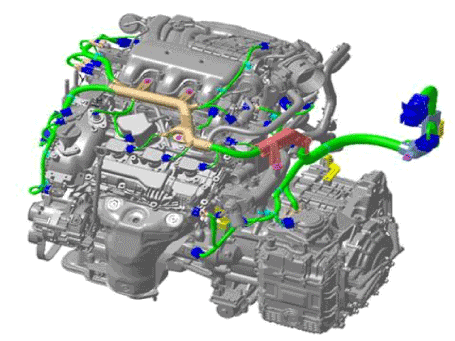

Disconnect the control wiring harness connectors and fasteners and remove
the wiring harness protectors from the water temperature control assembly.
|
| 13. |

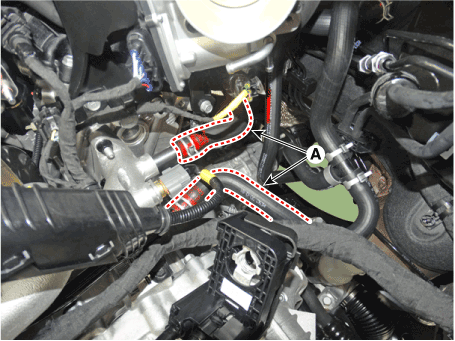

Disconnect the heater hoses (A).
|
| 14. |

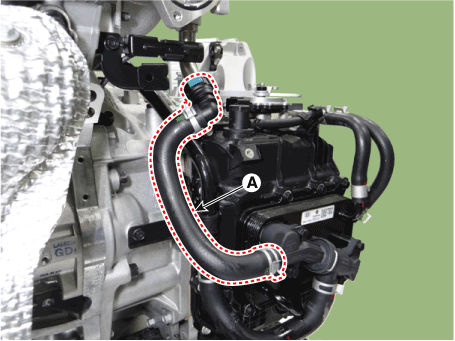

Disconnect the ATF warmer hose (A).
|
| 15. |

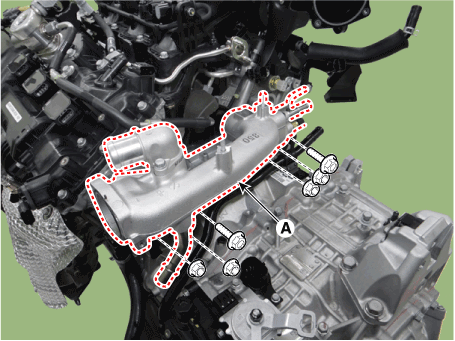

Remove the water temperature control assembly (A).
|
| 16. |

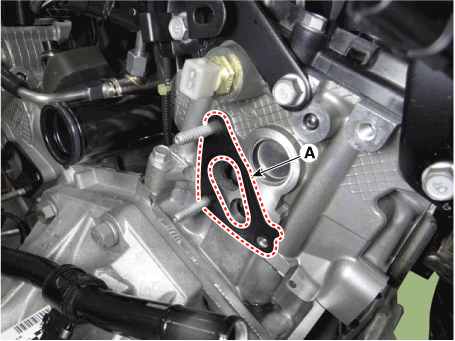

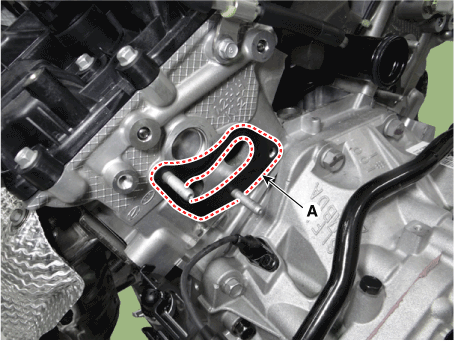

Remove the water temperature control assembly gasket (A).
[LH]
[RH]
|
| 17. |
Install in the reverse order of removal.
|
| 18. |
Fill the radiator with coolant.
(Refer to Cooling System - "Coolant")
|
| 19. |
Start engine and check for leaks.
|
| 20. |
Recheck the coolant level.
|
|
| 1. |
Remove the water temperature control assembly.
|
| 2. |
Remove the surge tank.
(Refer to Intake and Exhaust System - "Surge Tank")
|
| 3. |
Remove the intake manifold.
(Refer to Intake and Exhaust System - "Intake Manifold")
|
| 4. |

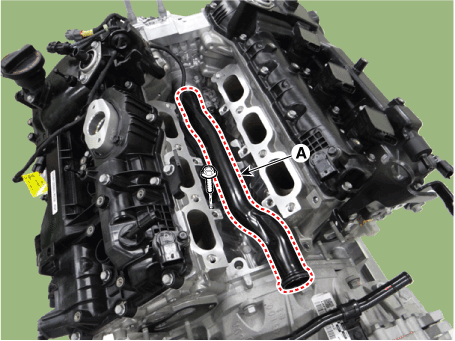

Remove the water center pipe (A).
|
| 5. |
Install in the reverse order of removal.
|
Repair procedures Removal and Installation 1. Disconnect the over flow hose (A). 2. Remove the reservoir tank (B).
