Repair procedures
Removal
Door mirror turn signal lamp
Hyundai Palisade. Repair procedures
Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

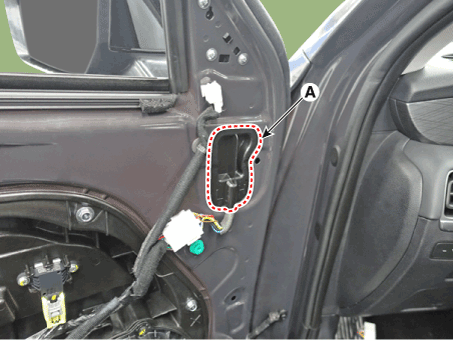

Remove the outside rear view mirror cover (A).

Hyundai Palisade. Repair procedures

4.

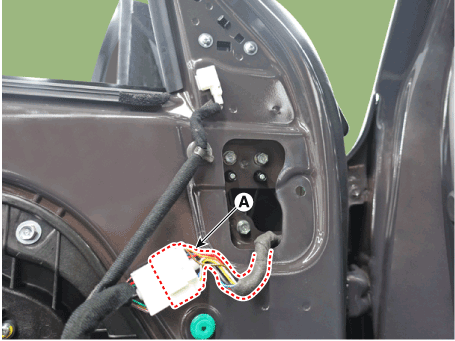

Disconnect the rear view mirror connector (A).

Hyundai Palisade. Repair procedures

5.

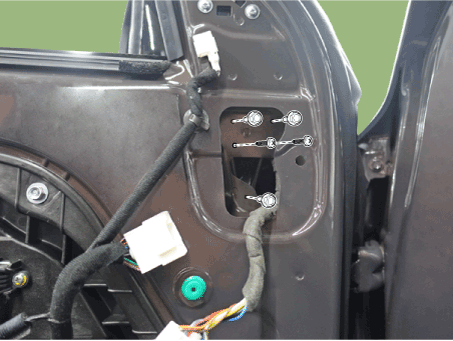

Loosen the mounting nuts and then remove the outside rear view mirror.

Hyundai Palisade. Repair procedures

Front turn signal lamp
1.
Disconnect the negative (-) battery terminal.
2.

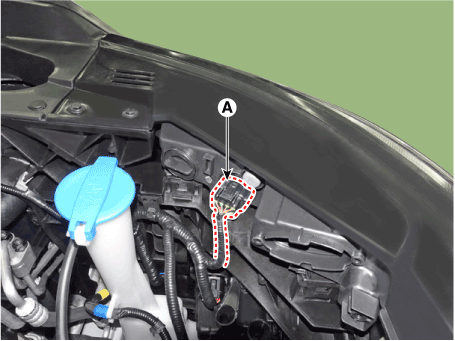

Remove the DRL connector (A).

Hyundai Palisade. Repair procedures

3.

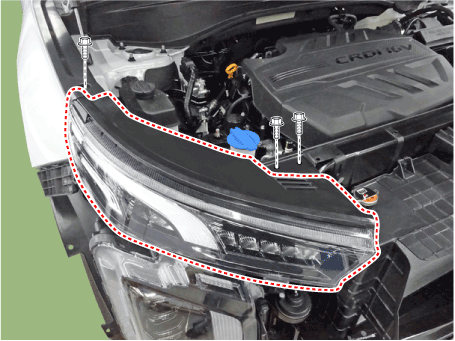

Remove the DRL after loosening the mounting bolts.

Hyundai Palisade. Repair procedures

Rear turn signal lamp
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear combination lamp.
(Refer to Lighting System - "Rear Combination Lamp")
Installation
Outside Rear View Mirror Turn Signal Lamp
1.
Install the outside mirror assembly and then connect the connector.
2.
Connect the negative (-) battery terminal.
Front turn signal lamp
1.
Install the DRL.
2.
Connect the DRL connector.
3.
Connect the negative (-) battery terminal.
Rear turn signal lamp
1.
Install the rear combination lamp.
2.
Connect the negative (-) battery terminal.
