Hyundai Palisade (LX2) 2020-2024 Service Manual / Body Electrical System / Panorama Sunroof / Schematic diagrams

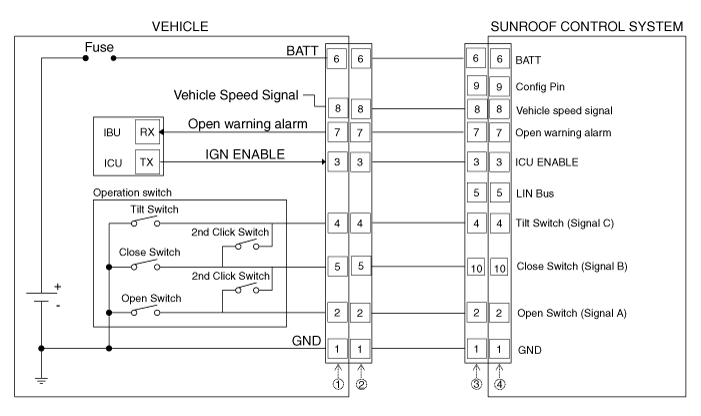

Circuit Diagram
Sunroof

Hyundai Palisade. Schematic diagrams

Roller blind

Hyundai Palisade. Schematic diagrams

Connector Pin Information
Sunroof
No
Wire harness connector
Panorama motor

Hyundai Palisade. Schematic diagrams


Hyundai Palisade. Schematic diagrams

1
Ground
Ground
2
Open switch
Open switch (SIG A)
3
ICU Enable
ICU Enable
4
Tilt up switch
Tilt up switch
5
Close switch
LIN Bus
6
Battery (+)
Battery (+)
7
Open alarm switch
Open alarm switch
8
Vehicle speed
Vehicle speed
9
-
Config pin
10
-
Close switch (SIG B)

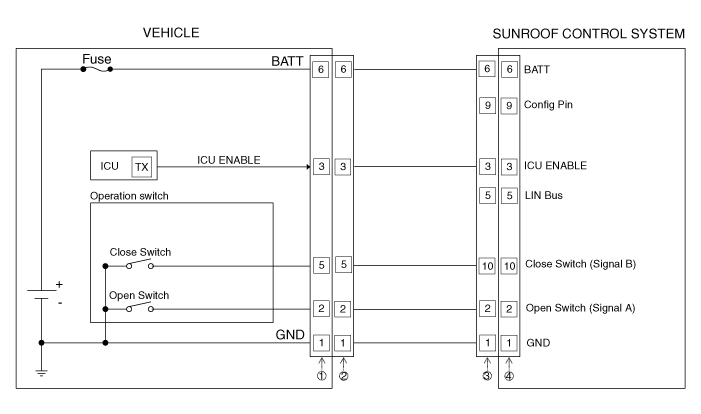

Roller blind
No
Wire harness connector
Panorama motor

Hyundai Palisade. Schematic diagrams


Hyundai Palisade. Schematic diagrams

1
Ground
Ground
2
Open switch
Open switch (SIG A)
3
ICU Enable
ICU Enable
4
-
-
5
Close switch
LIN Bus
6
Battery (+)
Battery (+)
7
-
-
8
-
-
9
-
Config pin
10
-
Close switch (SIG B)

    Components and components location

    Component Location 1. Panorama sunroof 2. Panorama sunroof switch 3. Panorama sunroof motor & controller 4...

    Panorama Sunroof Switch

    Repair procedures Inspection 1. Disconnect the negative (-) battery terminal. 2. Open the sunglass case cover from the overhead console then remove screws (2EA)...
