Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.
Turn the steering wheel so that the front wheels can face straight ahead.
3.
Remove the drive airbag module.
(Refer to Restraint - "Drive Air Bag Module")
4.

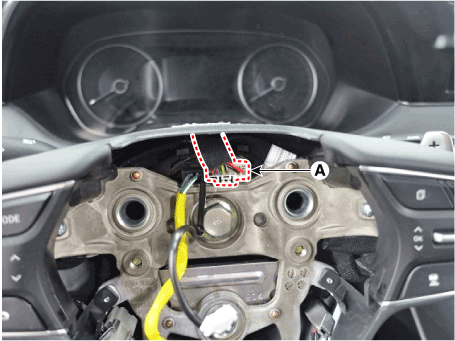

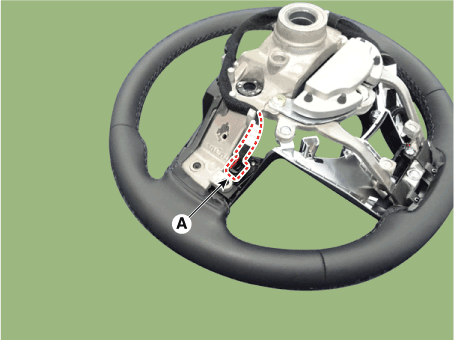

Disconnect the steering wheel connector (A).

Hyundai Palisade. Repair procedures
5.

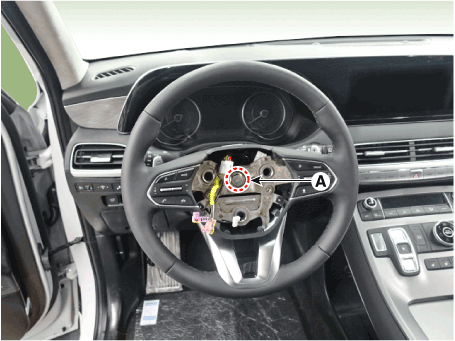

Remove the steering wheel after loosening the bolts (A).
Tightening torque :
44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
•
Do not reuse the steering lock bolt.
•

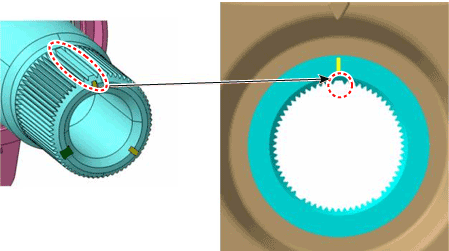

When assembling, match the gear teeth as the below illustration.

Hyundai Palisade. Repair procedures
Disassembly
[Non-Paddle Shift Type]
1.

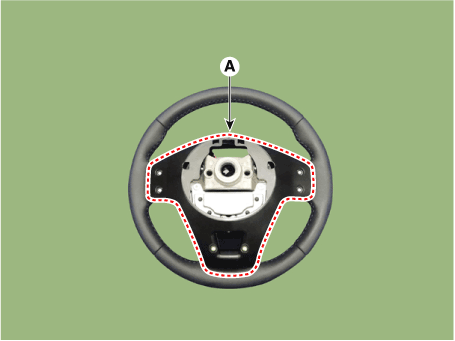

Loosen the screw and then remove the lower cover (A).

Hyundai Palisade. Repair procedures
2.

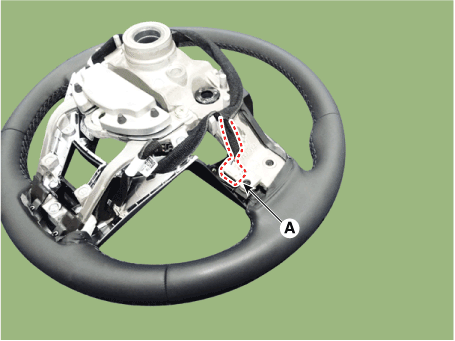

Disconnect the remote control switch connector (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
3.

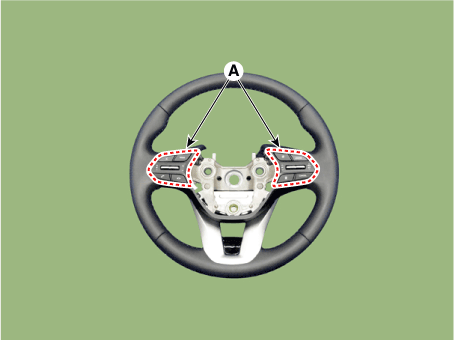

Loosen the screw and then remove the remote control switch (A).

Hyundai Palisade. Repair procedures
4.

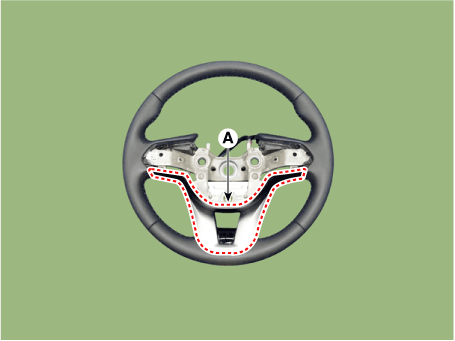

Remove the steering wheel bezel (A).

Hyundai Palisade. Repair procedures
[Paddle Shift Type]
1.

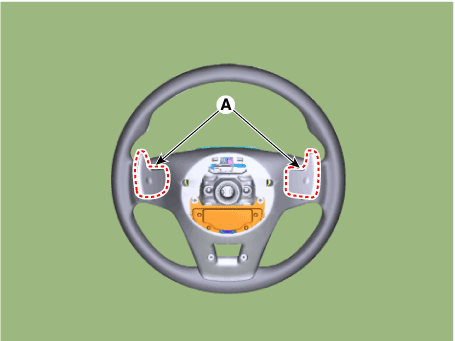

Loosen the screw and then remove the paddle shift switch (A).
2.
Remove the paddle shift switch after disconnect the connector.

Hyundai Palisade. Repair procedures
3.
Loosen the screw and then remove the lower cover (A).

Hyundai Palisade. Repair procedures
4.
Disconnect the remote control switch connector (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
5.
Loosen the screw and then remove the remote control switch (A).

Hyundai Palisade. Repair procedures
6.
Remove the steering wheel bezel (A).

Hyundai Palisade. Repair procedures
