Hyundai Palisade (LX2): Steering wheel / Components and components location

Components

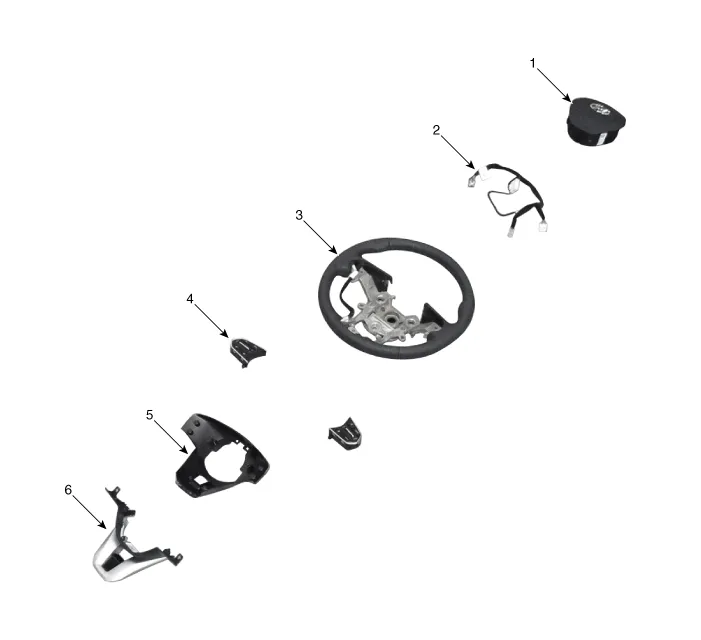

Hyundai Palisade. Components and components location

1. Drive airbag module
2. Wiring
3. Steering Wheel
4. Remote control switch
5. Lower cover
6. Bezel

    Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Turn the steering wheel so that the front wheels can face straight ahead.
