Hyundai Palisade: Rear Seat / Rear Seat Back Cover

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Back Cover

Components and components location
Component Location
[Second-row seat assembly for 7 passengers]

Hyundai Palisade. Components and components location

1. Second-row seat back assembly


[Second-row seat assembly for 8 passengers]

Hyundai Palisade. Components and components location

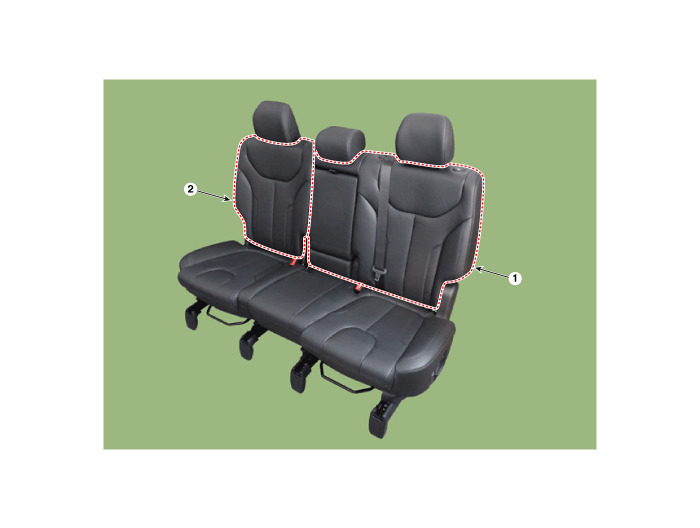

1. Second-row seat back assembly [LH]
2. Second-row seat back assembly [RH]

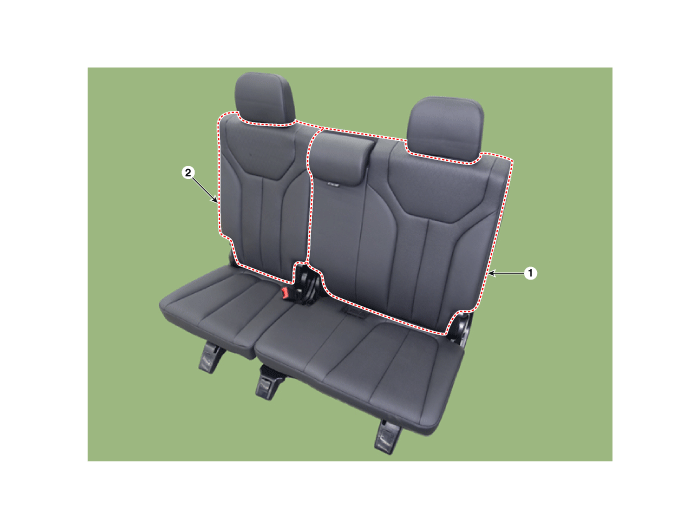

[Third-row seat assembly]

Hyundai Palisade. Components and components location

1. Third-row seat back assembly [LH]
2. Third-row seat back assembly [RH]

Repair procedures
Replacement
[Second-row seat assembly for 7 passengers]
Hyundai Palisade. Repair procedures
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
1.
Remove the Second-row seat assembly
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Loosen the mounting screw and remove the rear seat slide nob (A).

Hyundai Palisade. Repair procedures

3.

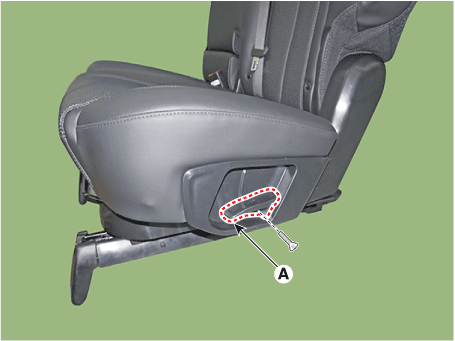

Loosen the mounting screws and remove the rear seat slide outer cover (A).

Hyundai Palisade. Repair procedures

4.

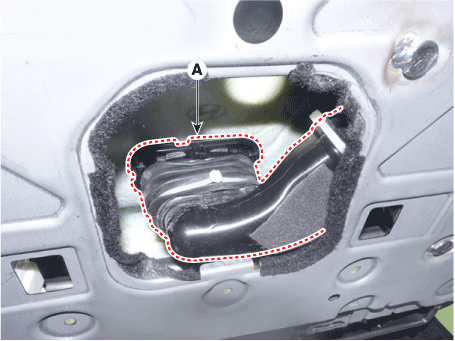

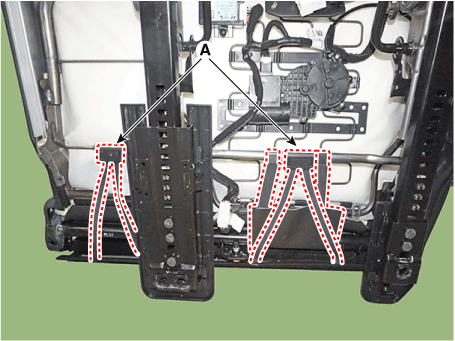

Press the lock pin and separate the rear seat slide connector (A).

Hyundai Palisade. Repair procedures

5.

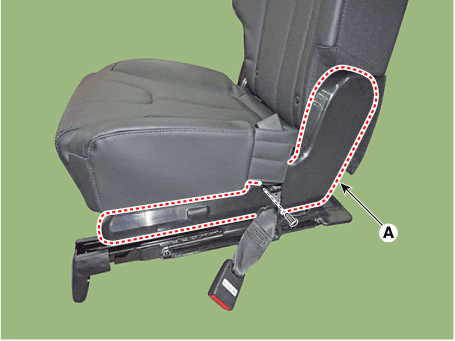

Remove the rear seat outer cover (A).

Hyundai Palisade. Repair procedures

6.
Loosen the mounting screw and remove the rear seat inner cover (A).

Hyundai Palisade. Repair procedures

7.

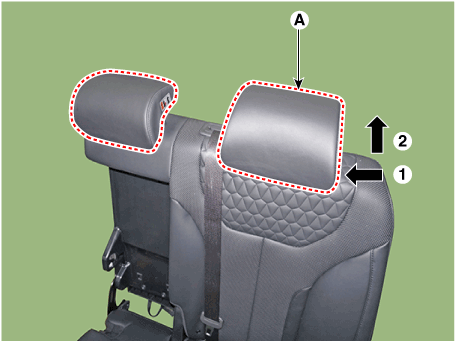

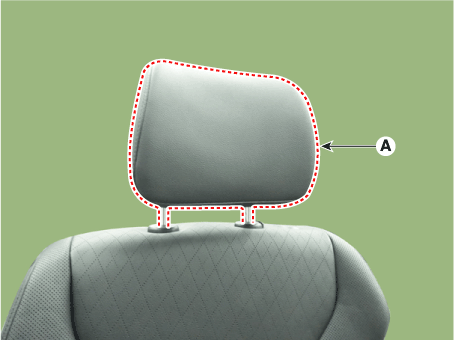

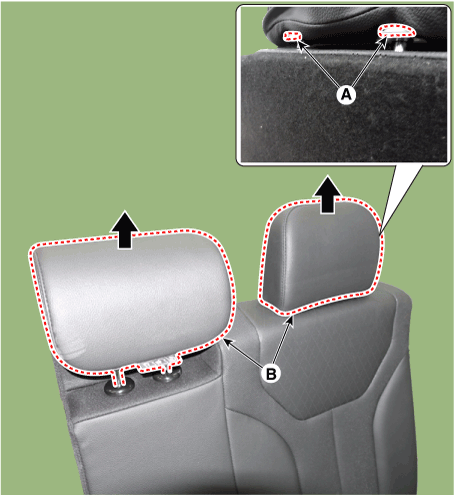

Remove the rear seat headrest (A).

Hyundai Palisade. Repair procedures

8.

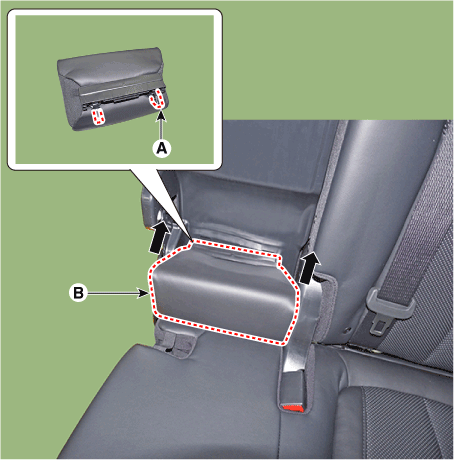

Remove the rear seat armrest cover (A), loosen the mounting bolts, and remove the rear seat armrest (B).

Hyundai Palisade. Repair procedures

9.

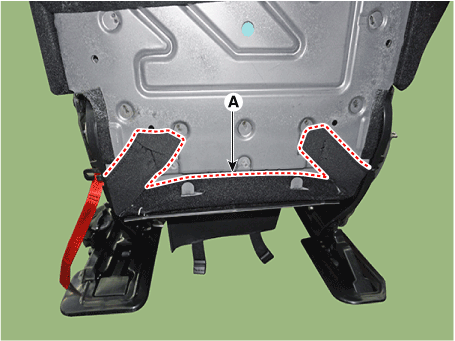

Remove the rear seat lower protector (A).

Hyundai Palisade. Repair procedures

10.

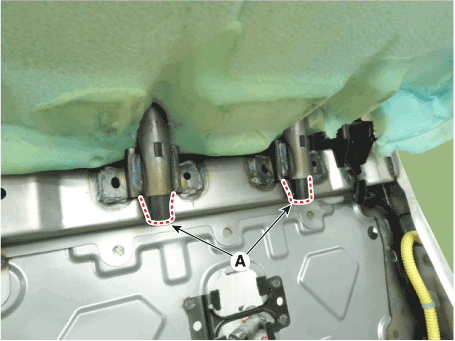

Using a flat-tip screwdriver and remove the child anchor cover (A) and rear seat back cover mounting hog-ring (B).

Hyundai Palisade. Repair procedures

11.
Remove the rear seat back lower protector (A).

Hyundai Palisade. Repair procedures

12.

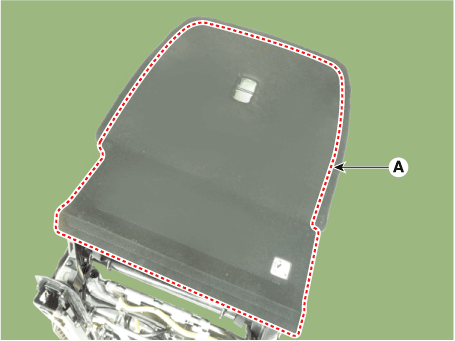

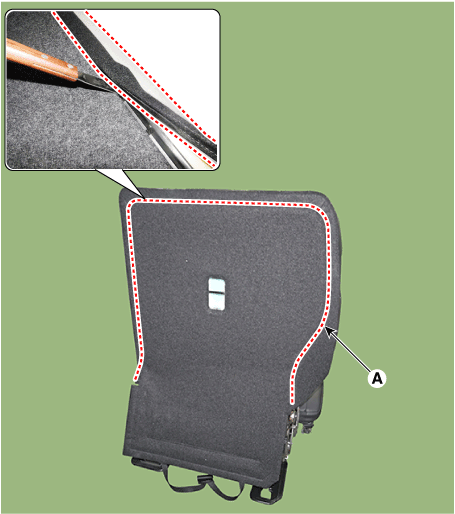

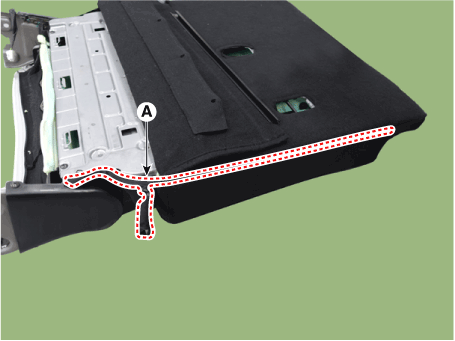

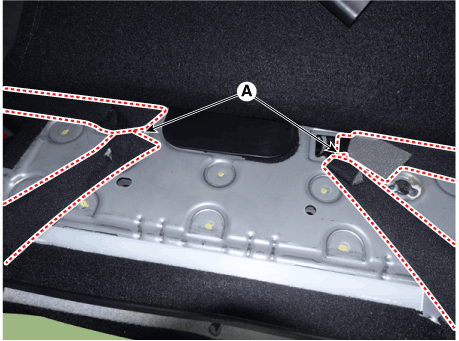

Remove the rear seat back mat assembly (A).

Hyundai Palisade. Repair procedures

13.

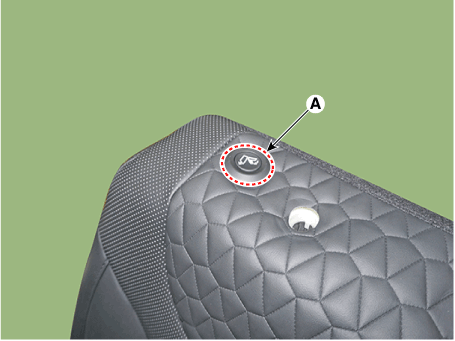

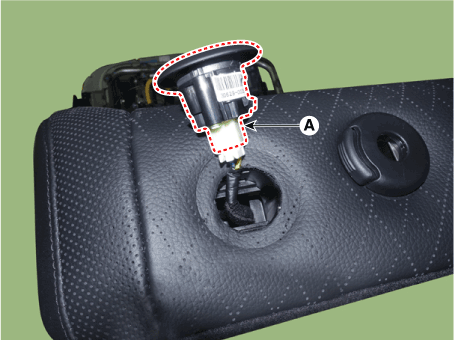

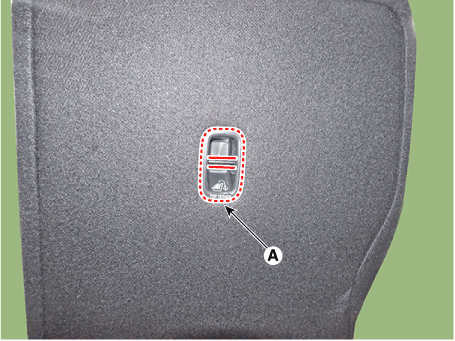

Using a flat-tip screwdriver and remove the rear seat back folding switch (A).

Hyundai Palisade. Repair procedures

14.

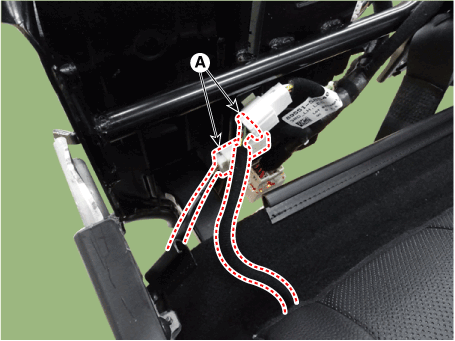

Press the lock pin and separate the rear seat back folding switch (A).

Hyundai Palisade. Repair procedures

15.

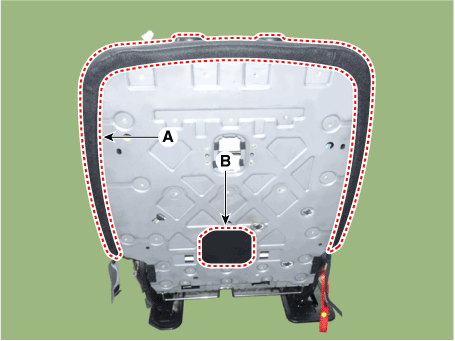

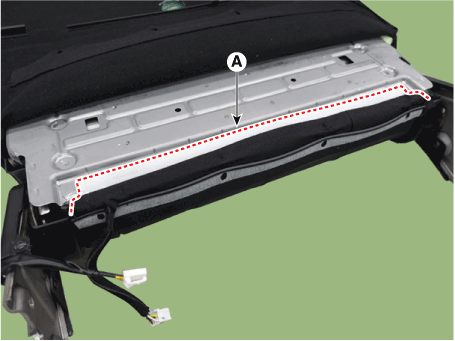

Using a flat-tip screwdriver, remove the rear seat back cover protector (A) and rear seat back panel cover (B).

Hyundai Palisade. Repair procedures

16.
Remove the rear seat ventilation duct (A).

Hyundai Palisade. Repair procedures

17.
Using a flat-tip screwdriver and remove the rear seat back cover inner protector (A).

Hyundai Palisade. Repair procedures

18.
Press the lock pin and remove the headrest guide (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

19.

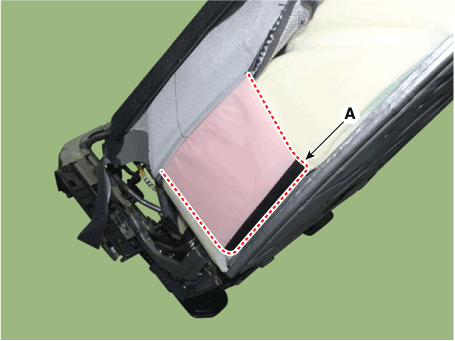

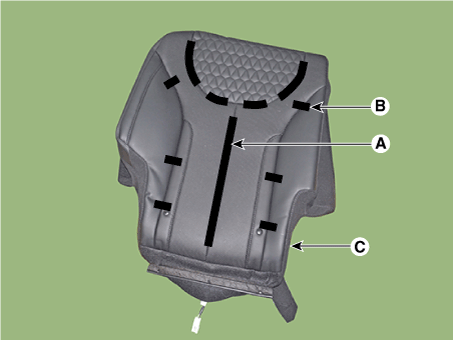

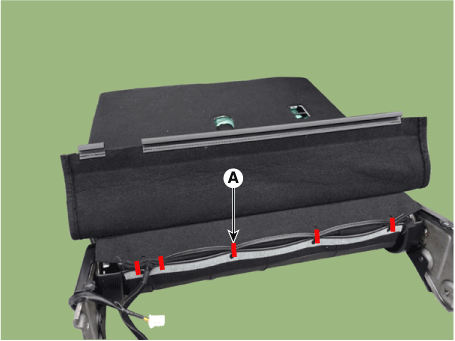

Remove the velcro tape (A) and hog-ring clips (B) inside the rear seat back cover and remove the rear seat back cover (C).

Hyundai Palisade. Repair procedures

20.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Tighten the cover (C) evenly before assembling the hog ring clip (B) to prevent wrinkling of the cover.
[Second-row seat assembly for 8 passengers]
(LH)
Hyundai Palisade. Repair procedures
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
1.
Remove the second row seat assembly [LH].
(Refer to Rear Seat - "Rear Seat Assembly")
2.

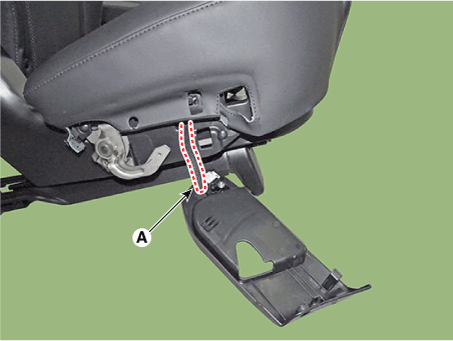

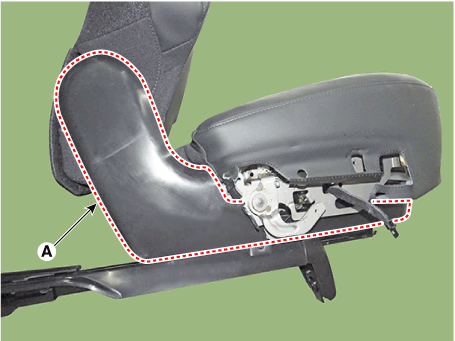

Remove the rear seat lower protector (A).

Hyundai Palisade. Repair procedures

3.

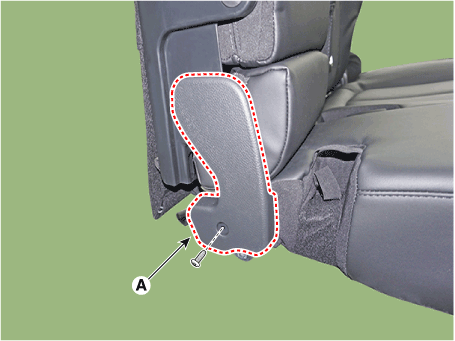

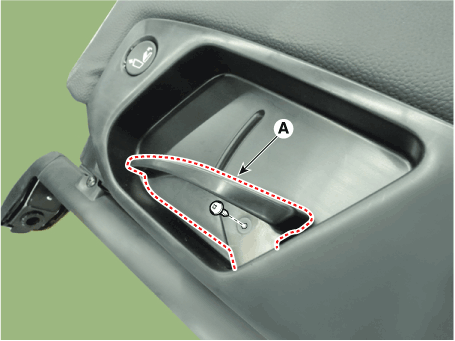

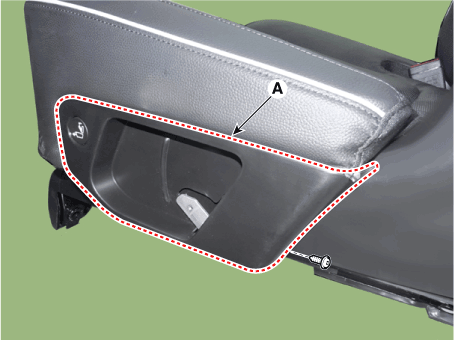

Loosen the mounting screw and remove the rear back armrest cover (A).

Hyundai Palisade. Repair procedures

4.
Loosen the mounting bolt and remove the rear back armrest (A).

Hyundai Palisade. Repair procedures

5.
Press the lock pin (A) and remove the rear back armrest pad (B).

Hyundai Palisade. Repair procedures

6.

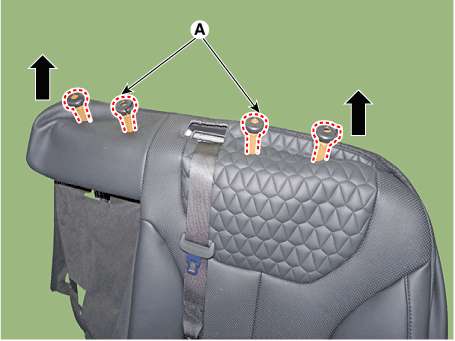

Press the lock pin and remove the rear seat headrest (A).

Hyundai Palisade. Repair procedures

7.

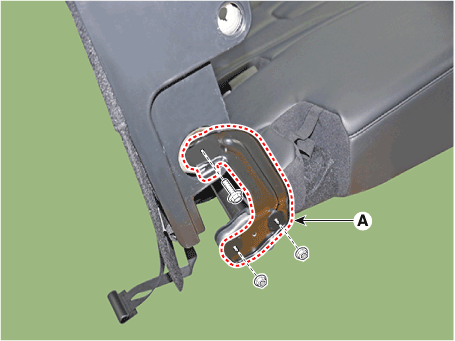

Loosen the mounting bolts and nuts , remove the rear back armrest braket (A).

Hyundai Palisade. Repair procedures

8.

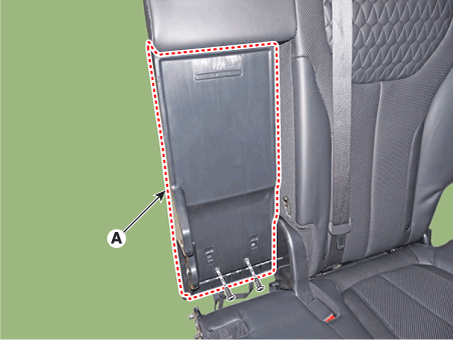

Loosen the mounting screws and remove the rear back armrest panel (A).

Hyundai Palisade. Repair procedures

9.
Using a screwdriver or remover and remove the rear seat shield outer cover (A).

Hyundai Palisade. Repair procedures

10.

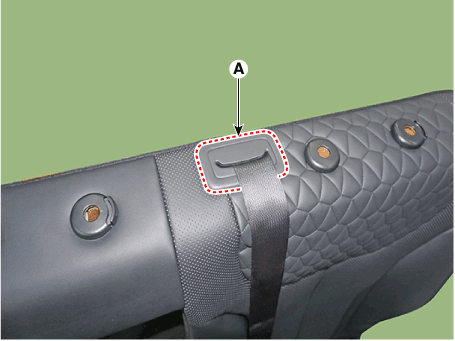

Using a screwdriver or remover and remove the rear center seat belt cover (A).

Hyundai Palisade. Repair procedures

11.
Loosen the rear center seat belt bolt (A).
Tightening torque :
44.1 - 58.8 N.m (4.5 - 6.0 kgf.m , 32.5 - 43.4 lb-ft)

Hyundai Palisade. Repair procedures

12.
Using a remover and remove the child anchor cover (A).

Hyundai Palisade. Repair procedures

13.
Remove the rear seat lower protector (A).

Hyundai Palisade. Repair procedures

14.

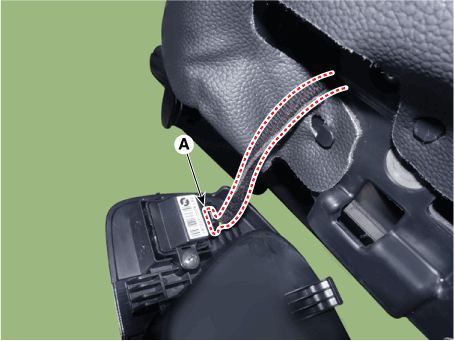

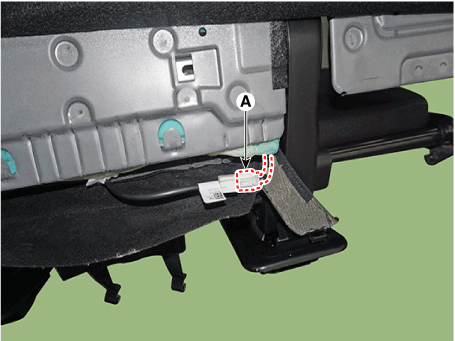

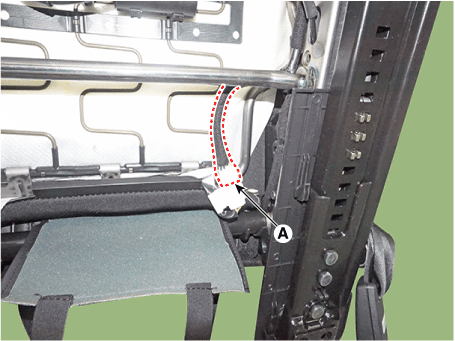

Press the lock pin and separate the seat heater connector (A).

Hyundai Palisade. Repair procedures

15.
Press the hooks and remove the headrest guide (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

16.

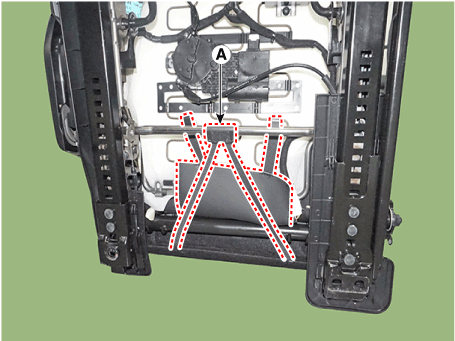

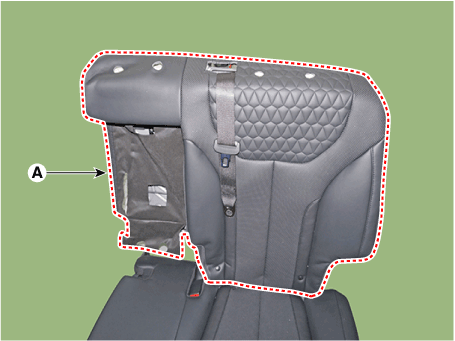

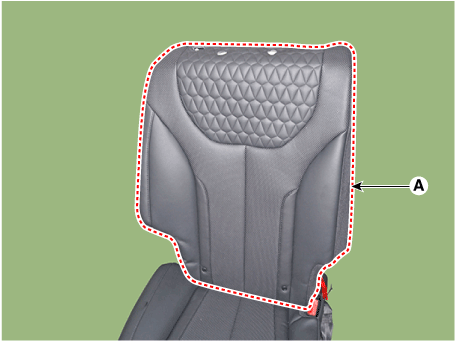

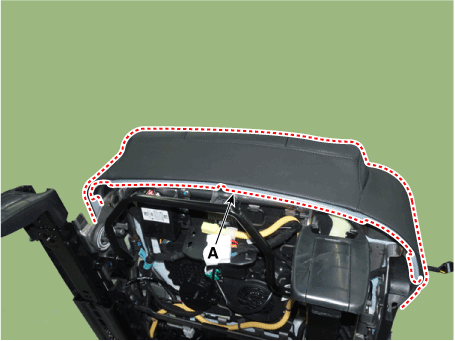

Remove the rear seat back cover assembly (A) from the rear seat frame.

Hyundai Palisade. Repair procedures

17.

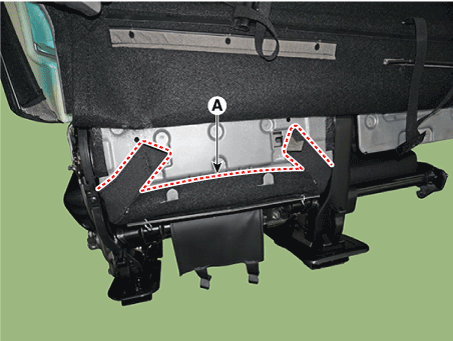

After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat back cover, remove the rear seat back cover (C).

Hyundai Palisade. Repair procedures

18.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Replace any damaged clips.
(RH)
Hyundai Palisade. Repair procedures
Put on gloves to protect your hands.
Hyundai Palisade. Repair procedures
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the second row seat assembly [RH].
(Refer to Rear Seat - "Rear Seat Assembly")
2.

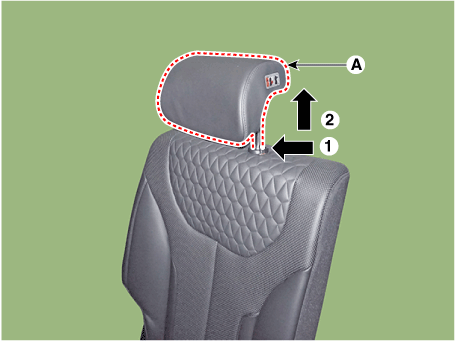

Push the lock pin (B), remove the rear seat headrest (A).

Hyundai Palisade. Repair procedures

3.
Remove the rear seat lower protector (A).

Hyundai Palisade. Repair procedures

4.
Loosen the mounting screw and remove the rear seat shield inner cover (A).

Hyundai Palisade. Repair procedures

5.
Press the lock pin and separate the connector (A).

Hyundai Palisade. Repair procedures

6.
Using a screwdriver or remover and remove the rear seat shield outer cover (A).

Hyundai Palisade. Repair procedures

7.
Using a remover and remove the child anchor cover (A).

Hyundai Palisade. Repair procedures

8.
Remove the rear seat back lower protector (A).

Hyundai Palisade. Repair procedures

9.
Press the lock pin and separate the heater connector (A).

Hyundai Palisade. Repair procedures

10.
Using a screwdriver or remover and remove the rear seat back cover (A).

Hyundai Palisade. Repair procedures

11.
Press the hooks and remove the headrest guide (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

12.

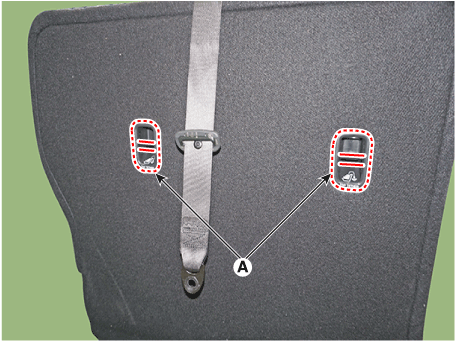

Using a remover and remove the rear seat back folding swich (A).

Hyundai Palisade. Repair procedures

13.
Press the lock pin and separate the rear seat back folding swich connector (A).

Hyundai Palisade. Repair procedures

14.
Remove the rear seat back cover assembly (A) from the rear seat frame.

Hyundai Palisade. Repair procedures

15.
After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat back cover, remove the rear seat back cover (C).

Hyundai Palisade. Repair procedures

16.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures
Replace any damaged clips.
[Third-row seat assembly]
Hyundai Palisade. Repair procedures
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
1.
Remove the third-row seat assembly
(Refer to Rear Seat - "Rear Seat Assembly")
2.

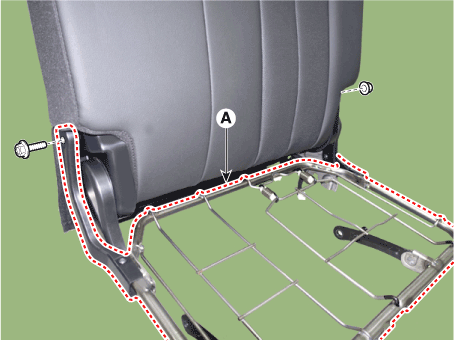

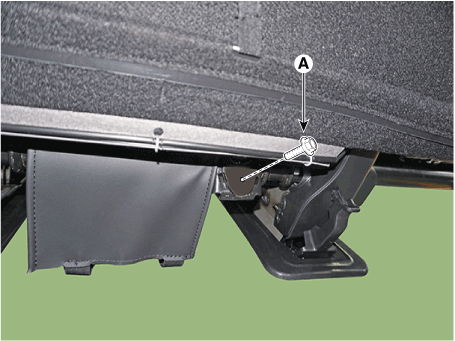

Loosen the mounting bolts, nuts and remove the third-row seat assembly main frame (A).

Hyundai Palisade. Repair procedures

3.
Press the lock pin and separate the third-row seat [RH] mounting connectors (A).

Hyundai Palisade. Repair procedures

4.
Loosen the mounting bolts and remove the third-row seat cushion frame (A).

Hyundai Palisade. Repair procedures

5.

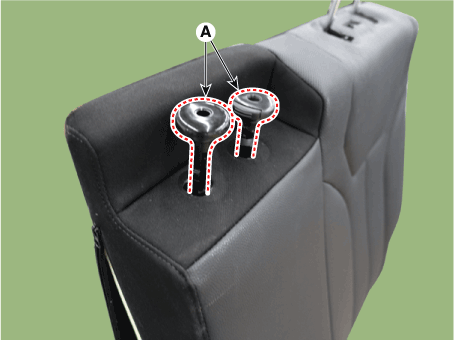

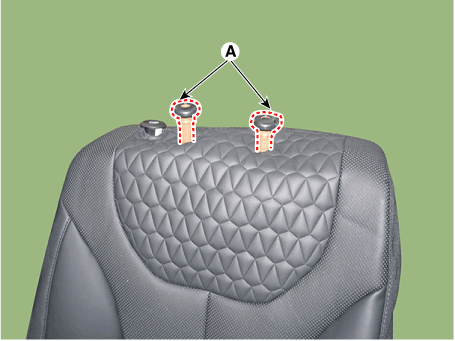

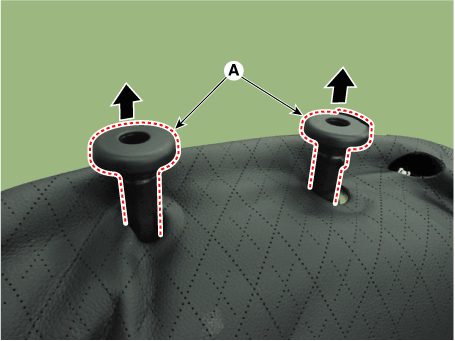

Push the button (A) and remove the third-row seat headrest (B).

Hyundai Palisade. Repair procedures

6.

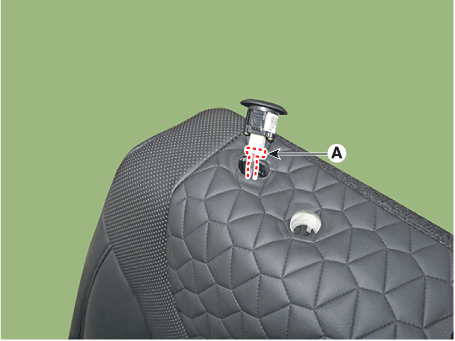

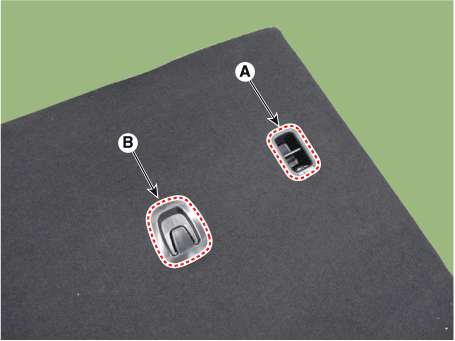

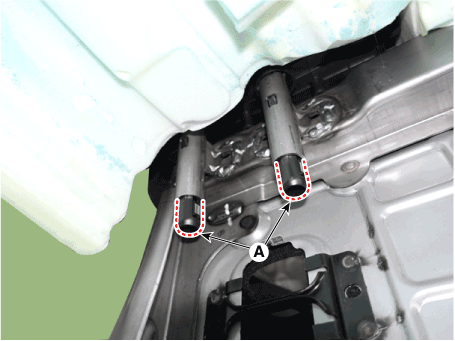

Using a remover and remove the child anchor cover (A) and shopping back hook (B).

Hyundai Palisade. Repair procedures

7.

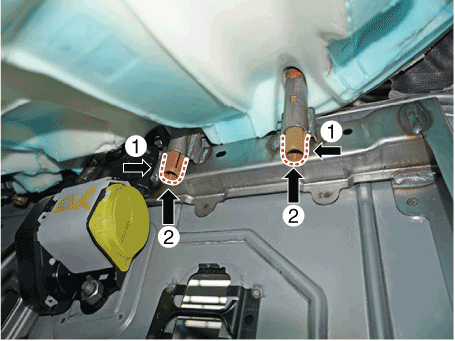

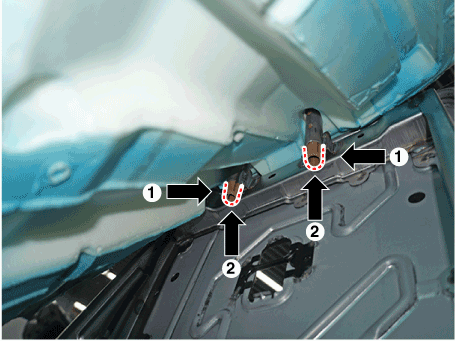

Remove the third-row seat back cover lower hog-ring (A).

Hyundai Palisade. Repair procedures

8.
Using a flat-tip screwdriver and remove the third-row seat back cover lower protector (A).

Hyundai Palisade. Repair procedures

9.

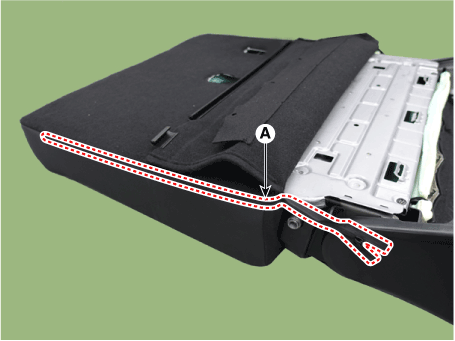

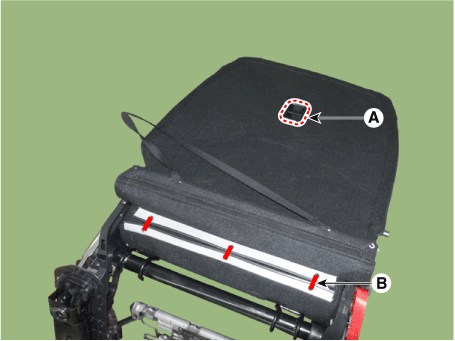

Open the third-row seat back cover side zipper (A).
[LH]

Hyundai Palisade. Repair procedures

[RH]

Hyundai Palisade. Repair procedures

10.
Using a remover and remove the headrest cover (A).

Hyundai Palisade. Repair procedures

11.
Push the lock pin and remove the headrest guide (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

12.

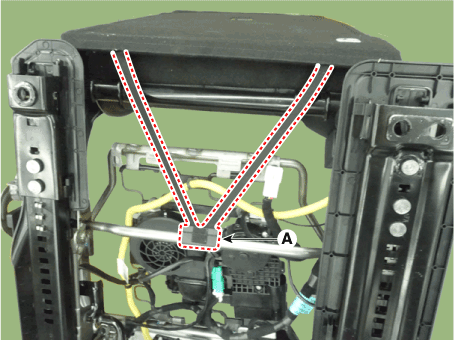

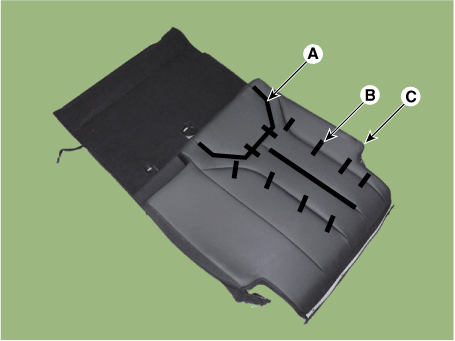

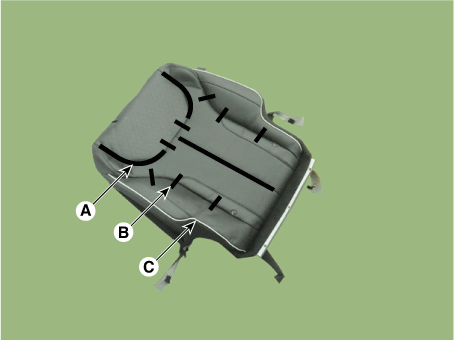

Remove the velcro tape (A) and hog-ring clips (B) inside the rear seat back cover and remove the third-row seat back cover (C).

Hyundai Palisade. Repair procedures

13.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Tighten the cover (C) evenly before assembling the hog ring clip (B) to prevent wrinkling of the cover.
