Hyundai Palisade: Rear Seat / Rear Seat Assembly
Components and components location

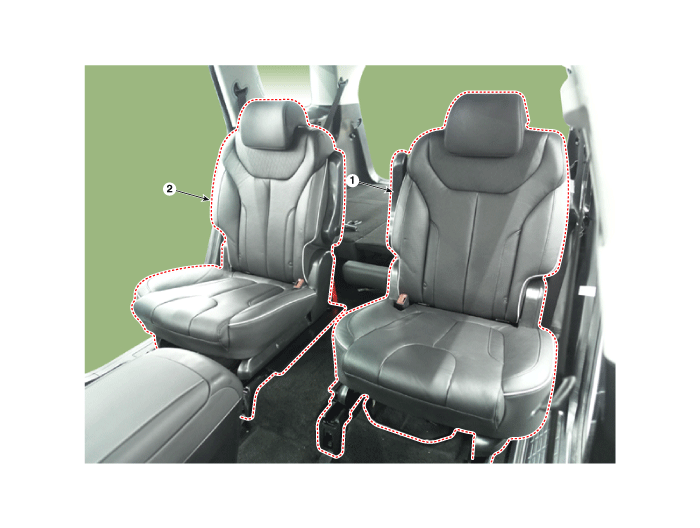

[Second-row seat assembly for 7 passengers]
|
![Hyundai Palisade. Components and components location](images/rear_seat_assembly-851/390/hyundai_palisade__components_and_components_location_3067.gif)
1. Second-row seat assembly [LH]
|
2. Second-row seat assembly [RH]
|

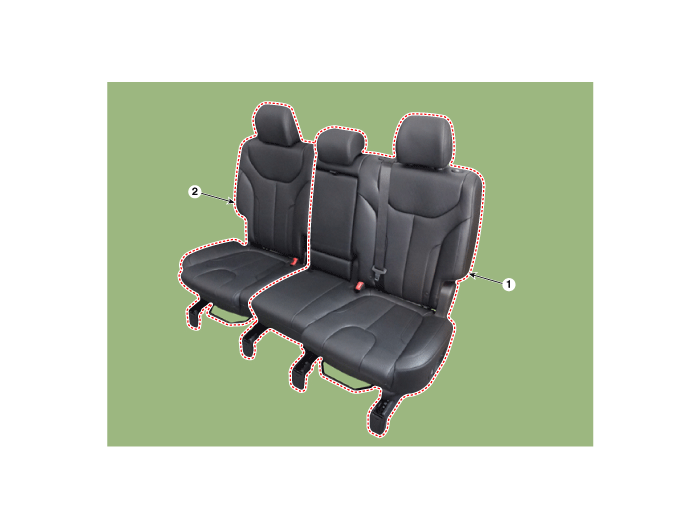

[Second-row seat assembly for 8 passengers] |
![Hyundai Palisade. Components and components location](images/rear_seat_assembly-851/390/hyundai_palisade__components_and_components_location_3068.gif)
1. Second-row seat assembly [LH]
|
2. Second-row seat assembly [RH]
|
[Third-row seat assembly] |
![Hyundai Palisade. Components and components location](images/rear_seat_assembly-851/390/hyundai_palisade__components_and_components_location_3069.gif)
1. Second-row seat assembly [LH]
|
2. Second-row seat assembly [RH]
|
Components and components location
Component Location
[Second-row seat assembly for 7 passengers]
1. Second-row seat back assembly
[Second-row seat assembly for 8 passengers]
1...
