Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

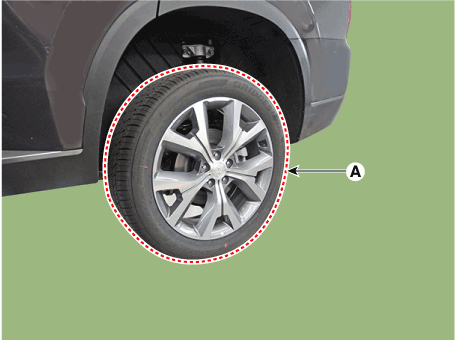

Remove the rear wheel and tire (A) from rear hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Hyundai Palisade. Repair procedures
•
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

Hyundai Palisade. Repair procedures
3.

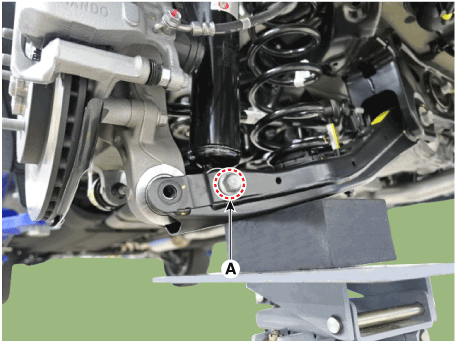

Loosen the bolt & nut and then remove the rear lower arm (A) from the rear axle.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)
Hyundai Palisade. Repair procedures
•
Set up the transmission jack under the lower arm in order to remove it in no-load condition.

Hyundai Palisade. Repair procedures
4.
Loosen the bolt & nut (A) and then disconnect the rear shock absorber from the lower arm.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

Hyundai Palisade. Repair procedures
5.
Loosen the nut (A) and then disconnect the stabilizer bar link from the lower arm.
Tightening torque:
98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

Hyundai Palisade. Repair procedures
6.

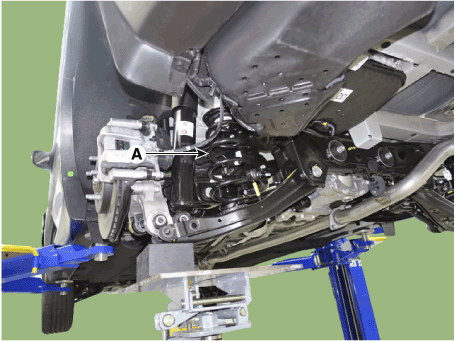

Remove the coil spring (A).

Hyundai Palisade. Repair procedures
Inspection
1.
Check the spring for distortion, aging or damage.
2.
Check the spring upper pad and lower pad for aging or damage.
Installation
1.
Install in the reverse order of removal.
2.
Check the alignment.
(Refer to Suspension System - "Alingment")
