Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front seat shield outer cover.
(Refer to Body - "Front Seat Shield Outer Cover")
3.

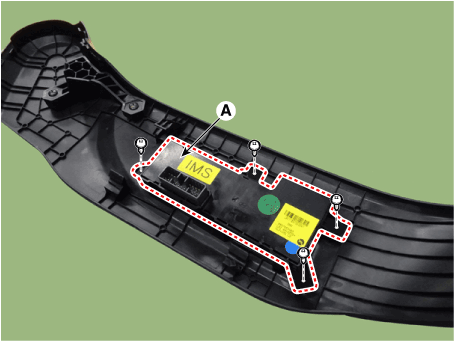

Remove the power seat control switch (A) after loosening the screws.

Hyundai Palisade. Repair procedures
Installation
1.
Install the power seat control switch after connecting the connector.
2.
Install the front seat shield outer cover.
3.
Connect the negative (+) battery terminal.

    Repair procedures Inspection Power Seat Motor 1. Disconnect the connectors for each motor. (Refer to Body - "Front Seat Assembly") A : Slide motor B : Rear height motor C : Front height motor D : Lumber support motor (Vertical) E : Lumber support motor (Horizontal) F : Backlest motor G : Cushion extension motor 2.

    Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front seat back cover.
