Hyundai Palisade: Automatic Transmission / Paddle Shifter
(Manual Shift Mode)
The paddle shifter is available when
the gear is in the D (Drive) position.

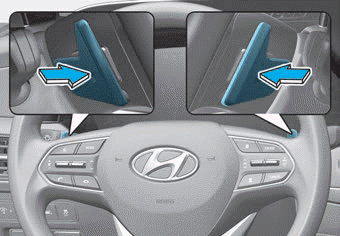

Pull the [+] or [-] paddle shifter once
to shift up or down one gear and the
system changes from automatic shift
mode to manual shift mode.
To change back to the automatic shift
mode from manual shift mode, do
one of the following:
- Gently depress the accelerator
pedal for more than 5 seconds.
- Drive the vehicle under 6 mph (10
km/h).
- Pull and hold the right side paddle
shifter.
Information
If the [+] and [-] paddle shifters are
pulled at the same time, gear shift may
not occur.
Never shift the gear from P (Park)
or N (Neutral) to any other position
with the accelerator pedal
depressed.
Never shift the gear into P (Park)
when the vehicle is in motion...
Power Brakes
Your vehicle has power-assisted
brakes that adjust automatically
through normal usage.
If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work...
Other information:
Components and components location
Components
1. Front seat heater switch
2. Rear seat heater switch
Schematic diagrams
Circuit Diagram
Front Seat
No
Connector A
1
C_CAN (High)
2
C_CAN (Low)
3
-
4
LIN
5
-
6
Auto hold signal
7
-
8
Battery (+)
9
IGN
10
Illumination (+)
11
-
12
Illumination (-)
13
Ground
14
DETENT
15
-
16
PDW signal
17
Steering wheel heater signal
18
DBC signal
19
ISG signal
20
SVM/RVM signal
21
ISG indicator
22
SVM indicator
23
PDW indicator
24
Steering whell heater indicator
2nd Seat
No
Connector A
1
Battery (+)
2
ISG Power(+)
3
Illumination (+)
4
Sensor REF (+5V)
5
Mode actuator feadback
6
Temperature actuator feedback
7
Mode actuator (Vent)
8
Mode actuator (Defrost)
9
Temperature actuator (Cooling)
10
Temperature actuator (Heating)
11
DETENT (-)
12
K-LINE
13
LIN line (Rear left seat)
14
LIN line (Rear right seat
15
-
16
Illumination (-)
17
IGN 2
18
IGN 1
19
Blower motor (+)
20
-
21
Rear FET (Drain feedback)
22
Rear FET (Gate)
23
Left heater swtich
24
Left heater indicator (High)
25
Left heater indicator (Middle)
26
Left heater indicator (Low)
27
Right heater swtich
28
Right heater indicator (High)
29
Right heater indicator (Middle)
30
Right heater indicator (Low)
31
Sensor ground
32
Ground
Repair procedures
Removal
Front seat
1...
Components and components location
Components
1. Surge tank
2. Surge tank stay
3. Positive crankcase ventilation
(PCV) hose
Repair procedures
Removal and Installation
1.
Remove the engine cover...
