Hyundai Palisade (LX2): Transfer Assembly / Transfer Fluid

Hyundai Palisade (LX2) 2020-2026 Service Manual / 4 Wheel Drive (AWD) System / Transfer Assembly / Transfer Fluid

Repair procedures

Inspection
Hyundai Palisade. Repair procedures
•
Transfer oil should be inspected and refilled every 60,000 km (40,000 mile) / 4 year.
1.
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
2.
Loosen the oil filler plug (A).

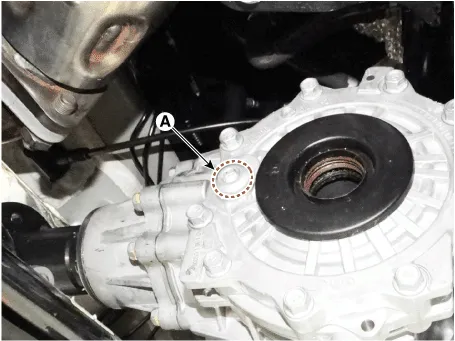

[Diesel 2.2]

Hyundai Palisade. Repair procedures

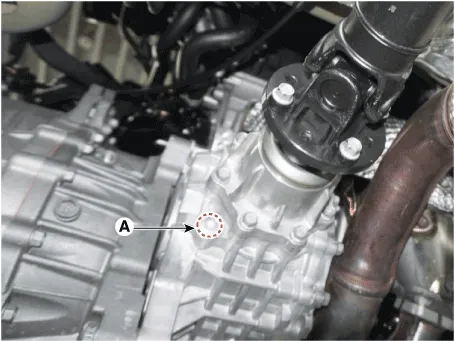

[Gasoline 3.5, 3.8]

Hyundai Palisade. Repair procedures
3.
Check the oil level.
Hyundai Palisade. Repair procedures
•

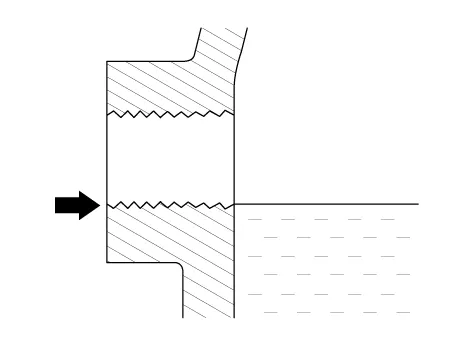

Oil level must be up to fill the hole, if not, add oil until it runs over.

Hyundai Palisade. Repair procedures
4.
Install the oil filler plug with new gasket.
Tightening torque :
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
5.
Install the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
Replacement
Hyundai Palisade. Repair procedures
Change
Capacity
Specification
Normal Use
 Severe Use
 Filled up to lower filler plug thread level.
Diesel 2.2 : 0.65 L ± 0.03 L
(0.17 U.S gal, 0.69 U.S qt, 0.57 lmp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.03 lmp qt)
Gasoline 3.5, 3.8 : 0.70 L ± 0.0325 L
(0.18 U.S gal, 0.74 U.S qt, 0.62 lmp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.03 lmp qt)
Hypoid gear oil API GL-5, MS 517-15 GTC 75W/85
(SK HCT-5 GEAR OIL 75W/85 or EQUIVALENT)
No service required
 120,000 km
(80,000 miles)

Severe driving conditions
•
Driving in dusty, rough roads
•
Drivng in mountains areas
•
Driving for patrol car, taxi, commercial car or vehicle towing
•
Driving over 170Km/h
* Transfer oil should be replaced if the transfer assembly is fall into the water.
1.
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
2.

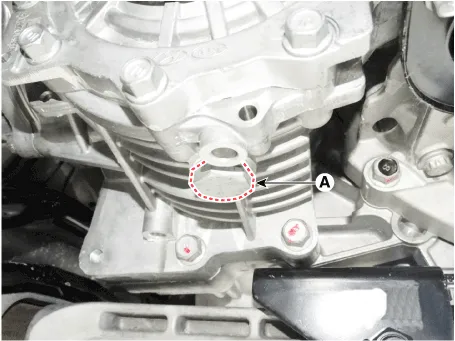

Drain the transfer oil after loosening the drain plug (A).

Hyundai Palisade. Repair procedures
3.
Install the drain plug with new gasket.
Tightening torque :
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
4.
Refill the transfer specified oil after loosening the filler plug (A).
Specified oil : Hypoid gear oil, MS 517-15 GTC 75/85 (GL-5)
Capacity : Filled up to lower filler plug thread level.
Diesel 2.2 : 0.65L ± 0.03L
(0.17 U.S gal, 0.69 U.S qt, 0.57 lmp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.03 lmp qt)
Gasoline 3.5, 3.8 : 0.70L ± 0.0325L
(0.18 U.S gal, 0.74 U.S qt, 0.62 lmp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.03 lmp qt)
[Diesel 2.2]

Hyundai Palisade. Repair procedures

[Gasoline 3.5, 3.8]

Hyundai Palisade. Repair procedures
5.
Install the filler plug with new gasket.
Tightening torque :
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
6.
Install the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
