The Surround View Monitoring system can assist in parking by allowing the driver to see around the vehicle.

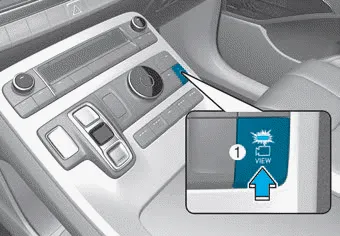

Push the button (1, indicator ON) to operate the system. To cancel the system, push the button again (1, indicator OFF).
The system is activated when:
The system is deactivated when:
Information
CAUTION

Surround View Monitor system only serves to assist the driver in parking. ALWAYS look around your vehicle to make sure there are no objects or obstacles before moving the vehicle.
NOTICE
Always keep the camera lens clean. The camera may not work normally if the lens is covered with foreign material.
The Rear View Monitor will activate when the engine is running and the shift button is in the R (Reverse) position. This is a supplemental system that helps provide a view of the area behind the vehicle through the infotainment system screen while the vehicle is in the R (Reverse) position.
â– Type B â– Type C - Driver-side â– Type C - Passenger-side BVM (Blind-spot View Monitor) system displays the driver-side or passenger- side rear areas in the cluster when the system is activated.
Specifications Specifications [BCW, BCA] Items Blind-Spot Collision Warning (BCW) Blind-Spot Collision- Avoidance Assist (BCA) Rated voltage DC 12V Operating voltage 9V - 16V Operating speed 30 km/h
Schematic diagrams Schematic Diagrams Repair procedures Removal 1. Remove the bumper cover. (Refer to Body - "Front Bumper Cover") (Refer to Body - "Rear Bumper Cover") 2.
