Repair procedures

Replacement
1.
Remove the roof trim assembly.
(Refer to Roof Trim - "Roof Trim Assembly")

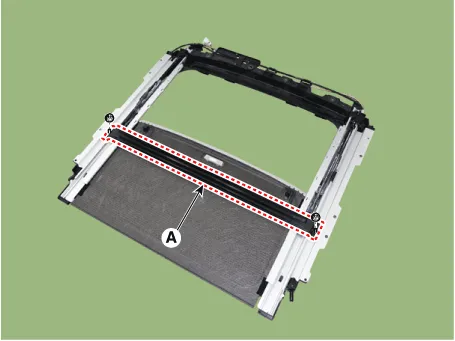

2.
Loosen the mounting nuts and remove the drain channel (A).
Hyundai Palisade. Repair procedures
•
Be careful to remove and install because the torque value is weak.

Hyundai Palisade. Repair procedures

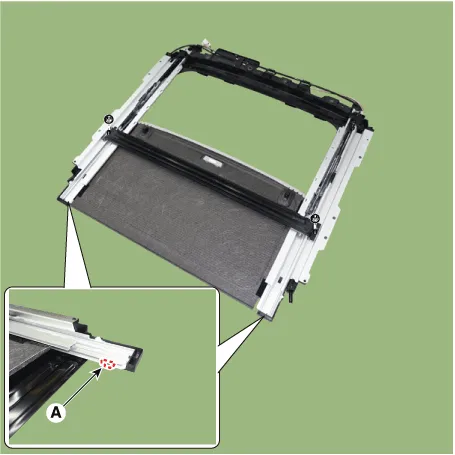

3.
Using a flat-tip screwdriver and remove the sunshade shoe clip (A).

Hyundai Palisade. Repair procedures

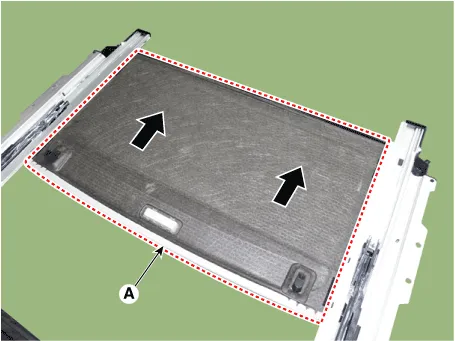

4.
Remove the sunshade (A).

Hyundai Palisade. Repair procedures
5.
Install in the reverse order of removal.
