Hyundai Palisade (LX2): Sunroof / Sunroof Roller Blind

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Roller Blind

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
Put on gloves to protect your hands.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Open the roller blind using the sunroof switch.
Hyundai Palisade. Repair procedures
•
Leave 20cm (0.7874 in) of the roller blind unopened.
2.
Remove the rear sunfoor assembly
(Refer to Sunroof - "Sunrool Assembly")
3.

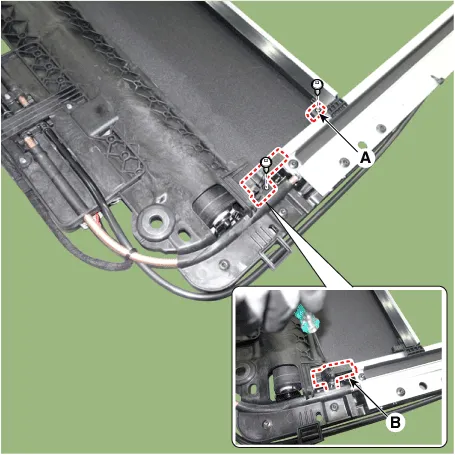

Loosen the mounting screws and using a remover and remove the roller blind shoe clip (A) and roller blind lid (B).

Hyundai Palisade. Repair procedures
4.

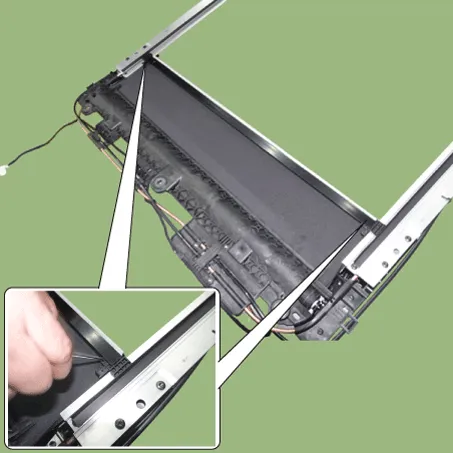

Using a remover and remove the roller blind from roller blind shoe.

Hyundai Palisade. Repair procedures
5.

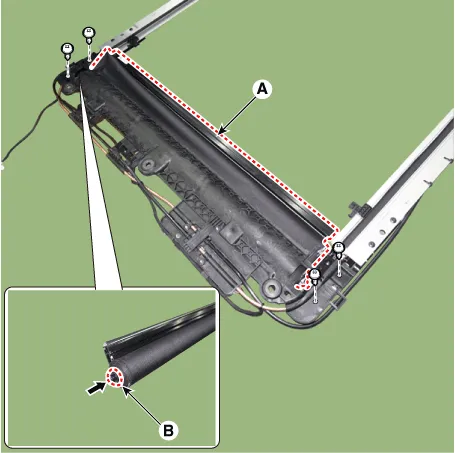

Loosen the mounting screws and separate the roller blind cover and push the washer (B) in the direction of the arrow to remove the roller blind (A).

Hyundai Palisade. Repair procedures
6.
Install in the reverse order of removal.

    Repair procedures Replacement 1. Remove the roof trim assembly. (Refer to Roof Trim - "Roof Trim Assembly") 2.
