Hyundai Palisade (LX2): Starting System / Starter

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Electrical System / Starting System / Starter

Specifications

Specification

Starter

Item		Specification
Rated voltage		12 V, 1.7 kW
The number of pinion teeth		11
Performance [No-load, 11.5 V]	Ampere	Max.105 A
	Speed	Min. 2,800 rpm

Description and operation

Description

The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T), ignition lock switch, connection wires and the battery cable.

When the ignition key is turned to the start position, current flows and energizes the starter motor's solenoid coil.

The solenoid plunger and clutch shift lever are activated, and the clutch pinion engages the ring gear.

The contacts close and the starter motor cranks.

In order to prevent damage caused by excessive rotation of the starter armature when the engine starts, the clutch pinion gear overruns.

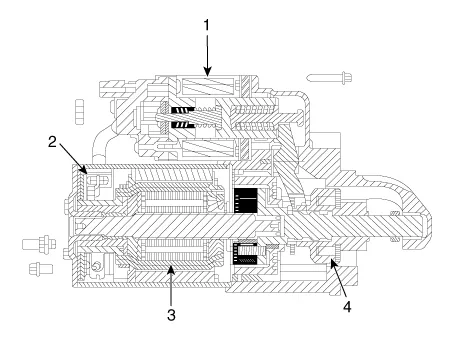

Hyundai Palisade. Description and operation

1. Solenoid
2. Brush assembly
3. Armature
4. Overrun clutch

Schematic diagrams

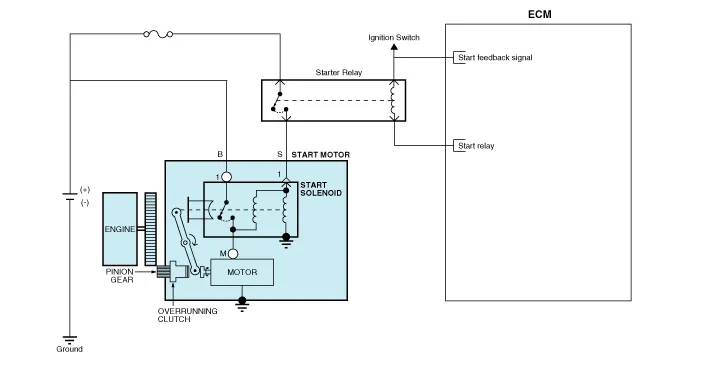

Circuit Diagram

Hyundai Palisade. Schematic diagrams
