Hyundai Palisade (LX2): Gauges and Meters / Speedometer

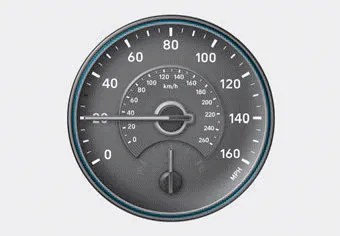

â– Type A and B

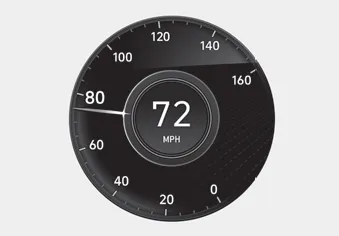

â– Type C
The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (MPH) and/or kilometers per hour (km/h).
â– Type A and B â– Type C The tachometer indicates the approximate number of engine revolutions per minute (rpm). NOTICE Do not operate the engine within the tachometer's RED ZONE.
