Hyundai Palisade (LX2): Panorama Sunroof / Schematic diagrams

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Panorama Sunroof / Schematic diagrams

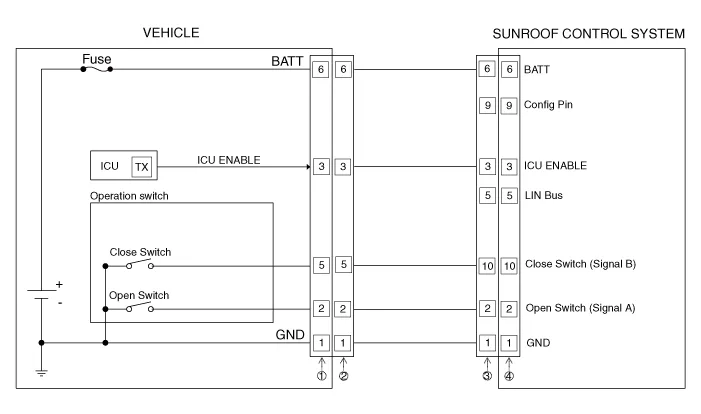

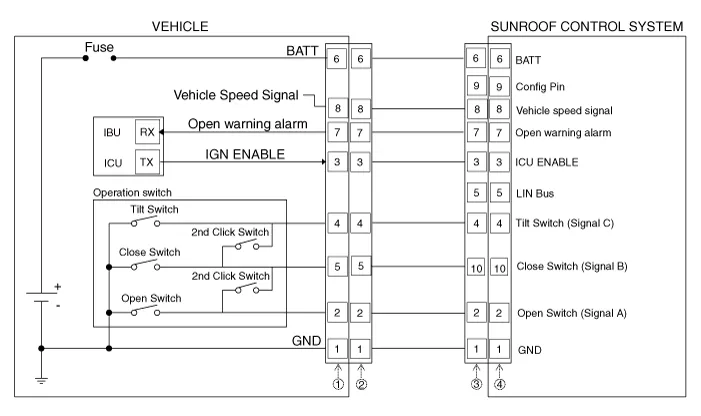

Circuit Diagram
Sunroof

Hyundai Palisade. Schematic diagrams

Roller blind

Hyundai Palisade. Schematic diagrams

Connector Pin Information
Sunroof
No
Wire harness connector
Panorama motor

Hyundai Palisade. Schematic diagrams

Hyundai Palisade. Schematic diagrams
1
 Ground
 Ground
2
 Open switch
 Open switch (SIG A)
3
 ICU Enable
 ICU Enable
4
 Tilt up switch
 Tilt up switch
5
 Close switch
 LIN Bus
6
 Battery (+)
 Battery (+)
7
 Open alarm switch
 Open alarm switch
8
 Vehicle speed
 Vehicle speed
9
 -
 Config pin
10
 -
 Close switch (SIG B)

Roller blind
No
Wire harness connector
Panorama motor

Hyundai Palisade. Schematic diagrams

Hyundai Palisade. Schematic diagrams
1
 Ground
 Ground
2
 Open switch
 Open switch (SIG A)
3
 ICU Enable
 ICU Enable
4
 -
 -
5
 Close switch
 LIN Bus
6
 Battery (+)
 Battery (+)
7
 -
 -
8
 -
 -
9
 -
 Config pin
10
 -
 Close switch (SIG B)

    Component Location 1. Panorama sunroof 2. Panorama sunroof switch 3. Panorama sunroof motor & controller 4.

    Repair procedures Inspection 1. Disconnect the negative (-) battery terminal. 2. Open the sunglass case cover from the overhead console then remove screws (2EA).
