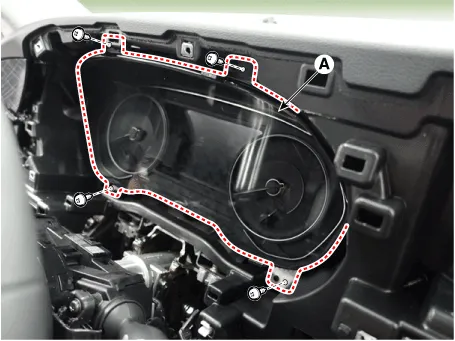

Hyundai Palisade (LX2): Indicators And Gauges / Repair procedures

Description Communication Network Diagram Abbreviation Explanation IBU Interated Body Control Unit DDM Driver Door Module PTGM Power Tail Gate Module ICU Interated Control Unit ECU Engine Control Unit CLU Cluster MDPS Moter Driven Power Steering SVM Sorround View Monitor ACU Airbag Control Unit VDC Vehicle Dynamic Control SCC Smart Cruise Control LKA Lane Keeping Assist BCW Blind-Spot Collision Warning SAS Steering Angle Sensor HUD Head up Display TCU Transmission Control Unit FR DATC Dual Automatic Temp Control 4WD Four Wheel Drive F/PUMP Fuel Pump Control Module POCS Passenger Occupant Classification System IMS Integrated Memory System AMP Amplifier AVN Head Unit (Audio / AVN) HUD Head Up Display RR CAMERA Rrar View Camera FR CON Front Console Switch EOP Electric Oil Pump SBW Shift BY Wire W/CHAR Wireless Power Chager FR M/LP Front Mood Lamp 3ND FOLD 3ND Seat Folding Control Unit AUDIO Audio unit KEY BOARD Center Fascia Keyboard

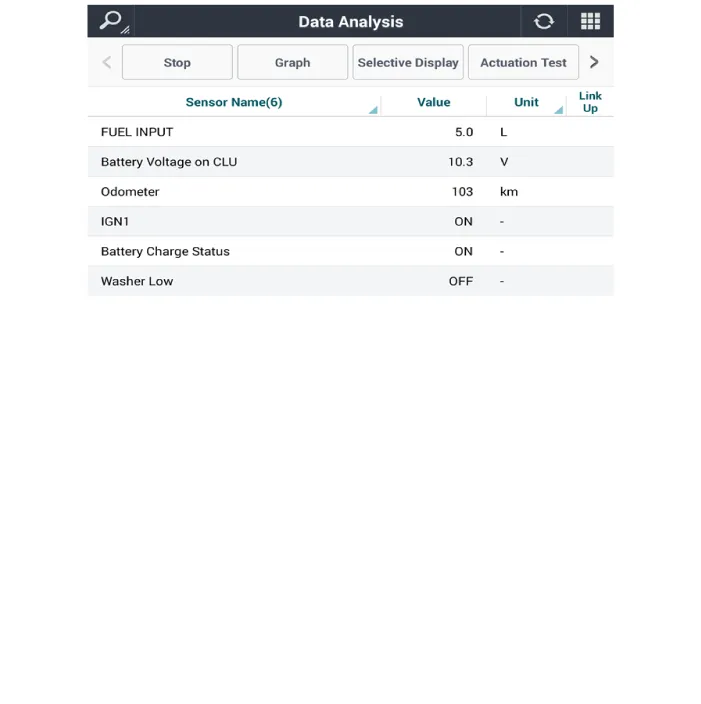

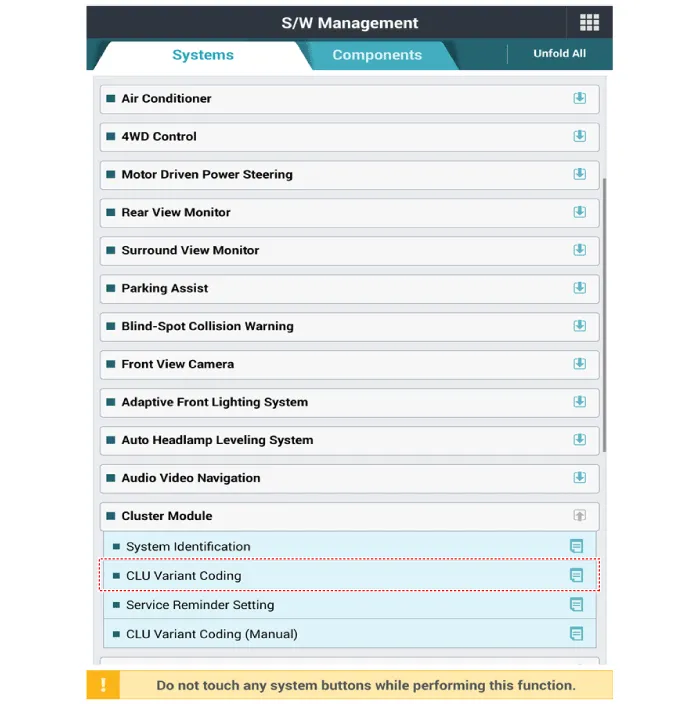

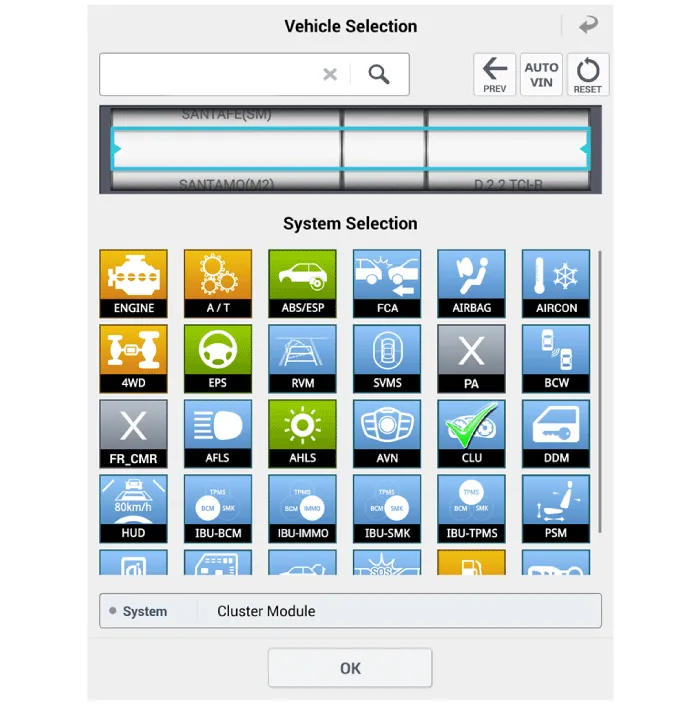

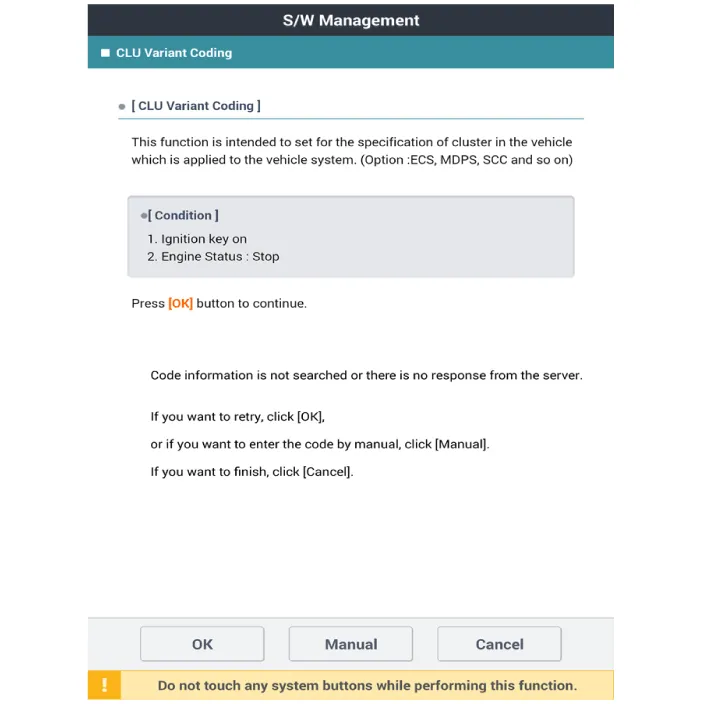

Troubleshooting Symptom Possible cause Remedy Speedometer does not operate Cluster fuse (10A) blown Check for short and replace fuse Speedometer faulty Check speedometer CAN line faulty Check the EMS Wiring or ground faulty Repair if necessary Tachometer does not operate Cluster fuse (10A) blown Check for short and replace fuse Tachometer faulty Check tachometer CAN line faulty Check the EMS Wiring or ground faulty Repair if necessary Fuel gauge does not operate Cluster fuse (10A) blown Check for short and replace fuse Fuel gauge faulty Check gauge Fuel sender faulty Check fuel sender Wiring or ground faulty Repair if necessary Low fuel warning lamp does not light up Cluster fuse (10A) blown Check for short and replace fuse Bulb burned out Replace bulb Fuel sender faulty Check fuel sender Wiring or ground faulty Repair if necessary Water temperature gauge does not operate Cluster fuse (10A) blown Check for short and replace fuse Water temperature gauge faulty Check gauge Water temperature sender faulty Check sender CAN line faulty Check the EMS Wiring or ground faulty Repair if necessary Oil pressure warning lamp does not light up Cluster fuse (10A) blown Check for short and replace fuse Bulb burned out Replace bulb Oil pressure switch faulty Check switch Wiring or ground faulty Repair if necessary Parking brake warning lamp does not light up Cluster fuse (10A) blown Check for short and replace fuse Bulb burned out Replace bulb Brake fluid level warning switch faulty Check switch Parking brake switch faulty Check switch Wiring or ground faulty Repair if necessary Open door warning lamp and tailgate warning lamp do not light up Memory fuse (15A) blown Check for short and replace fuse Bulb burned out Replace bulb Door switch faulty Check switch Wiring or ground faulty Repair if necessary Seat belt warning lamp does not light up Cluster fuse (10A) blown Check for short and replace fuse Bulb burned out Replace bulb Seat belt switch faulty Check switch Wiring or ground faulty Repair if necessary Speedometer and odometer does not operate CAN line faulty Check the ABS ECU Wheel speed sensor faulty Check the wheel speed sensor
