Hyundai Palisade (LX2): Hood / Repair procedures
| Adjustment |
| 1. |

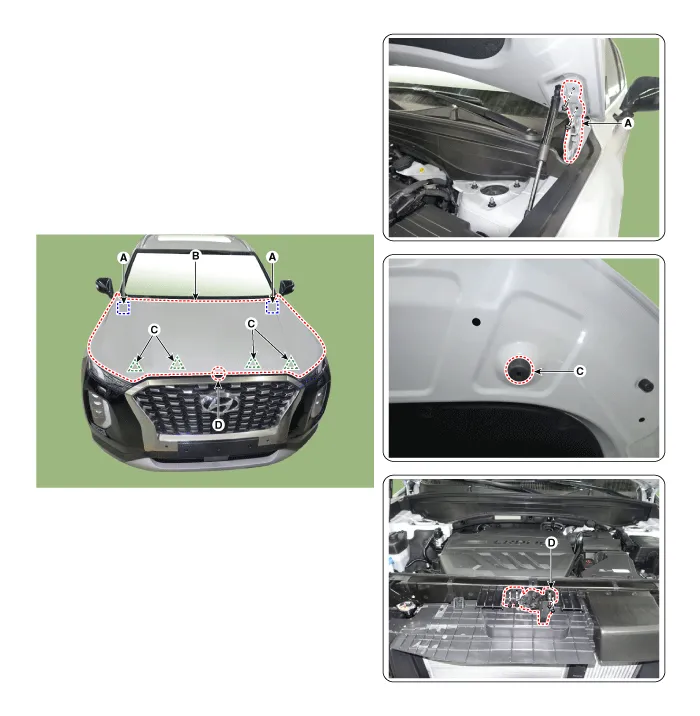

After loosening the hinge (A) mounting bolt, adjust the hood (B) by
moving it up and down or from side to side and tighten the bolt.
|
| 2. |
Adjust the hood height by moving the hood overslam bumpers (C) up and
down.
|
| 3. |
After loosening the hood latch (D) mounting bolts, adjust the latch
by moving it up and down or from side to side.
|
Components and components location Component Location 1. Hood assembly Repair procedures Replacement • Be careful not to damage the hood and body.
