Hyundai Palisade (LX2): Electronic Parking Brake (EPB) / Releasing the parking brake

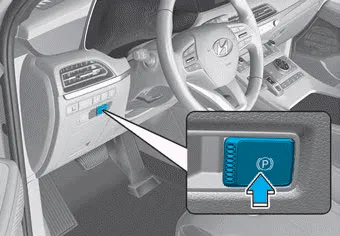

To release the EPB (Electronic Parking Brake):
- Place the ignition switch in the ON position.
- Depress and hold the brake pedal.
- Press the EPB switch.
Make sure the Parking Brake Warning Light goes off.
Information
- For your safety, you can engage the EPB even though the ignition switch is in the OFF position, but you cannot release it.
- For your safety, depress the brake pedal and release the parking brake manually with the EPB switch when you drive downhill or when backing up the vehicle.
NOTICE
- If the parking brake warning light is still on even though the EPB has been released, have the system checked by an authorized HYUNDAI dealer.
- Do not drive your vehicle with the EPB applied. It may cause excessive brake pad and brake rotor wear.
EPB (Electronic Parking Brake) may be automatically applied when:
- Requested by other systems
- The driver turns the engine off while Auto Hold is operating.
Applying the parking brake To apply the EPB (Electronic Parking Brake): 1. Depress the brake pedal. 2. Pull up the EPB switch. Make sure the Parking Brake i Warning Light comes on.
To release EPB, fasten seatbelt, close door, hood and liftgate If you try to drive with the EPB applied, a warning will sound and a message will appear.
