Hyundai Palisade (LX2): Body Side Molding / Door Garnish

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Body Side Molding / Door Garnish

Repair procedures

Replacement
[Front]
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

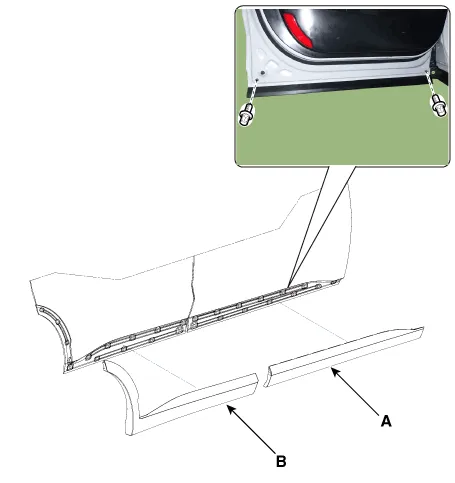

Loosen the mounting nuts and remove the front door garnish (A).

Hyundai Palisade. Repair procedures
2.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
[Rear]
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

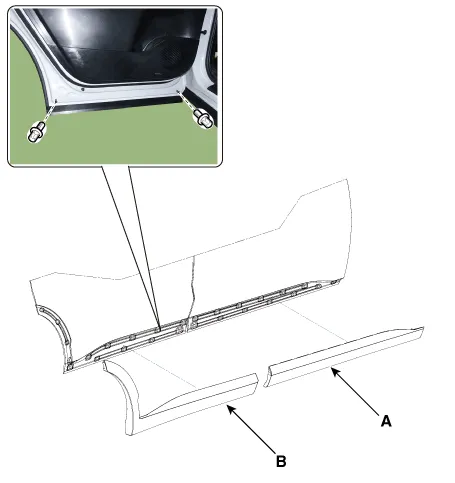

Loosen the mounting nuts and remove the rear door garnish (A).

Hyundai Palisade. Repair procedures
2.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
