Hyundai Palisade (LX2): Rear Door / Rear Door Inside Handle

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Inside Handle

Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

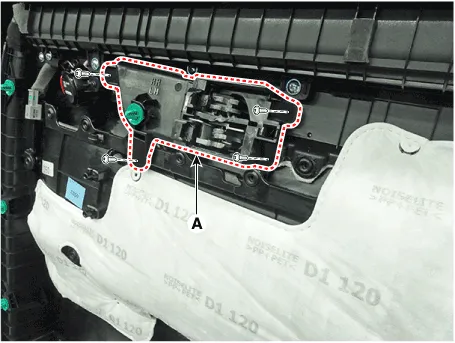

Loosen the mounting screws and remove the rear door inside handle (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
