Hyundai Palisade (LX2): Power Tailgate Module / Power Tailgate Latch

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Power Tailgate Module / Power Tailgate Latch

Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
3.

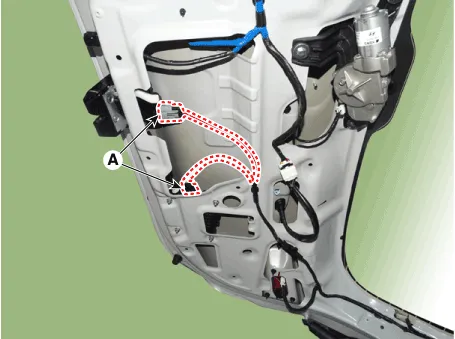

Disconnect the power tailgate latch and PCU connector (A).

Hyundai Palisade. Repair procedures
4.

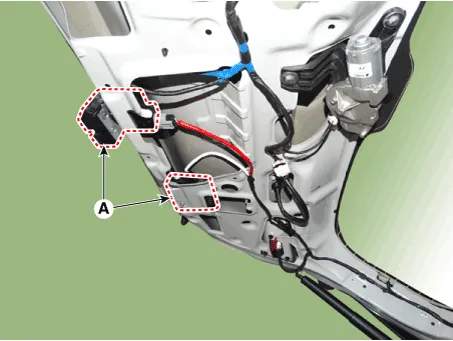

Remove the power tailgate latch and PCU (A) assembly after loosening moungting nuts & bolts.

Hyundai Palisade. Repair procedures
Installation
1.
Install the power tailgate latch & PCU assembly.
2.
Install the tailgate trim.
3.
Connect the negative (-) battery terminal.
Inspection
Inspection of the Power Tailgate Latch
Refer to Power Tailgate System - "Troubleshooting"

    Components and components location Components Schematic diagrams Circuit Diagram Repair procedures Removal    1) After replacing with a new power tailgate module, check for DTC code at all times.

    Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the tailgate trim.
