Hyundai Palisade (LX2): Seat Electrical / Power Seat Control Switch
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front seat shield outer cover.
(Refer to Body - "Front Seat Shield Outer Cover")
|
| 3. |

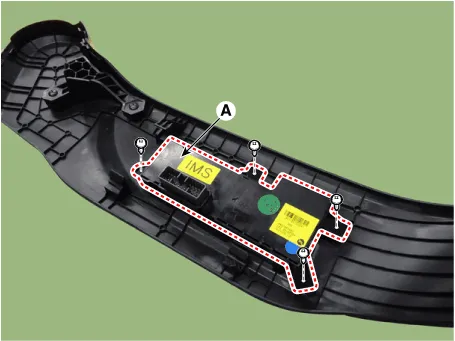

Remove the power seat control switch (A) after loosening the screws.
|
| Installation |
| 1. |
Install the power seat control switch after connecting the connector.
|
| 2. |
Install the front seat shield outer cover.
|
| 3. |
Connect the negative (+) battery terminal.
|
Repair procedures Inspection Power Seat Motor 1. Disconnect the connectors for each motor. (Refer to Body - "Front Seat Assembly") A : Slide motor B : Rear height motor C : Front height motor D : Lumber support motor (Vertical) E : Lumber support motor (Horizontal) F : Backlest motor G : Cushion extension motor 2.
Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front seat back cover.
