Hyundai Palisade (LX2): Power Liftgate / Power liftgate opening height user setting
Follow the instructions below to set the fully open height of the power liftgate:
1. Position the liftgate manually to the height you prefer.

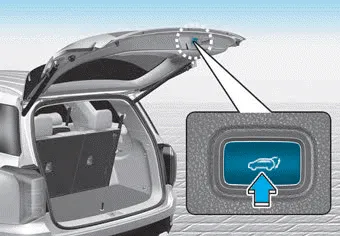

2. Press the power liftgate inner button for more than 3 seconds.
3. Close the liftgate manually after hearing the buzzer sound.
The liftgate will open to the manually adjusted height that was set.
WARNING
Always keep the liftgate completely closed while the vehicle is in motion. If it is left open or ajar, poisonous exhaust gases containing carbon monoxide (CO) may enter the vehicle and serious illness or death may result.
WARNING
Rear cargo area
Occupants should never ride in the rear cargo area where no restraints are available.To avoid injury in the event of an accident or sudden stops, occupants should always be properly restrained.
If the battery has been discharged or disconnected, or if the power liftgate fuse has been replaced or removed, reset the power liftgate by performing the following procedure: 1.
Your vehicle is equipped with an emergency liftgate safety release lever located on the bottom of the liftgate inside the vehicle. To unlock and open the liftgate manually from inside the luggage compartment, perform the following steps: 1.
