Hyundai Palisade (LX2): Airbag Module / Passenger Airbag (PAB) Module

Hyundai Palisade (LX2) 2020-2025 Service Manual / Restraint / Airbag Module / Passenger Airbag (PAB) Module

Components and components location

Components

[LHD]

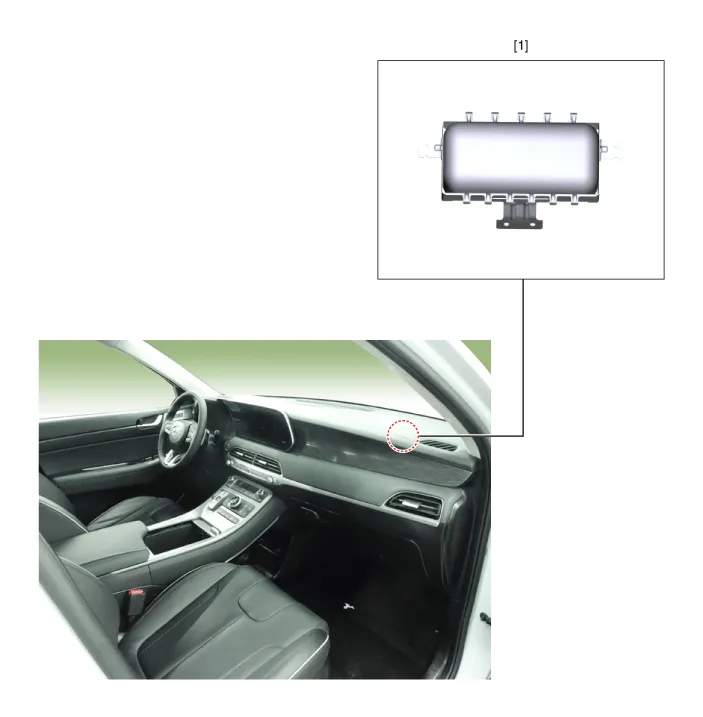

Hyundai Palisade. Components and components location

1. Passenger airbag (PAB)

Description and operation

Description

The passenger airbag (PAB) is installed inside the crash pad and protects the front passenger in the event of a frontal crash. The SRSCM determines if and when to deploy the PAB.

•	Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using a specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.

Repair procedures

Removal

1.	Disconnect the battery negative cable and wait for at least three minutes before beginning work.

2.	Remove the glove box housing. (Refer to Body - "Glove Box Housing")

3.	Disconnect the passenger airbag connector (A).

Remove the main crash pad.

(Refer to Body - "Main Crash Pad Assembly")

•	Replace the crash pad which is damaged while PAB is deployed.

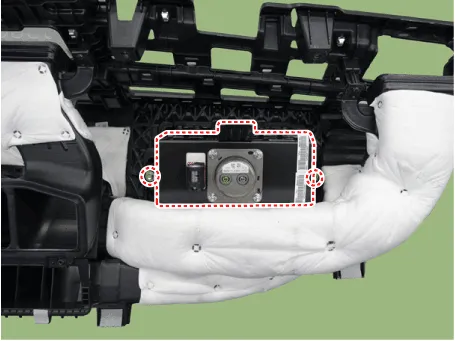

Loosen the mounting bolt and then remove the PAB.

Hyundai Palisade. Repair procedures

•	The removed airbag module should be stored in a clean, dry place with the airbag cushion up.

Installation

1.	Disconnect the battery negative cable from battery and wait for at least three minutes before beginning work.

Place a passenger airbag on the crash pad and tighten the passenger airbag mounting bolts (A).

Tightening torque :

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Hyundai Palisade. Repair procedures

3.	Install the main crash pad. (Refer to Body - "Main Crash Pad Assembly")

Tighten the passenger airbag mounting bolts and then connect the passenger airbag harness connector.

Tightening torque :

8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb-.ft)

5.	install the Glove box housing (Reper Body - "Glove Box")

6.	Reconnect the battery cable(-)

7.	After installing the passenger airbag, confirm proper system operation: Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off.
