Hyundai Palisade (LX2): Airbag Module / Side Airbag (SAB) Module

Components and components location

Components

Hyundai Palisade. Components and components location

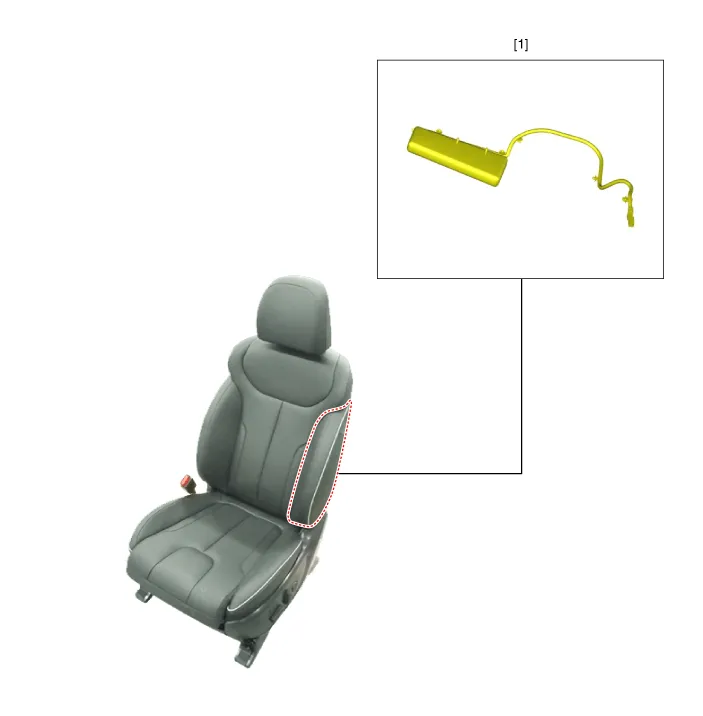

1. Side airbag (SAB)


Description and operation

Description
The Side Airbags (SAB) are installed inside the front seat and protects the driver and passenger from danger when a side crash occurs. The SRSCM determines deployment of the side airbag by using the Side Impact Sensor (SIS) signal.
Hyundai Palisade. Description and operation
•
Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using a specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.

    Components and components location Components [LHD] 1. Passenger airbag (PAB) Description and operation Description The passenger airbag (PAB) is installed inside the crash pad and protects the front passenger in the event of a frontal crash.

    Components and components location Components 1. Curtain Airbag (CAB) Repair procedures Removal 1.
