Hyundai Palisade (LX2): Transfer Assembly / Oil Seal

Hyundai Palisade (LX2) 2020-2026 Service Manual / 4 Wheel Drive (AWD) System / Transfer Assembly / Oil Seal

Repair procedures

Replacement
[Driveshaft side oil seal]
1.
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
2.
Remove the sub frame. [Gasoline 3.5/ 3.8]
(Refer to Suspension System - "Sub Frame")
3.
Remove the front driveshaft assembly. [Right side]
(Refer to Driveshaft and axle - "Front Driveshaft")
4.
Remove the front muffler. [Gasoline 3.5/ 3.8]
(Refer to Engine Mechanical System - "Muffler")
5.

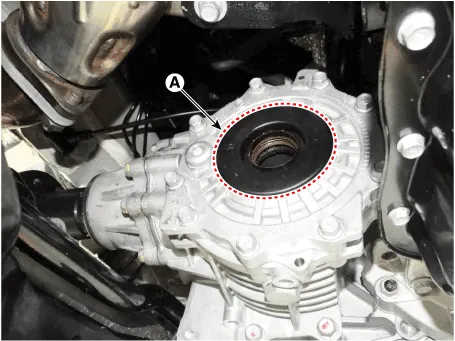

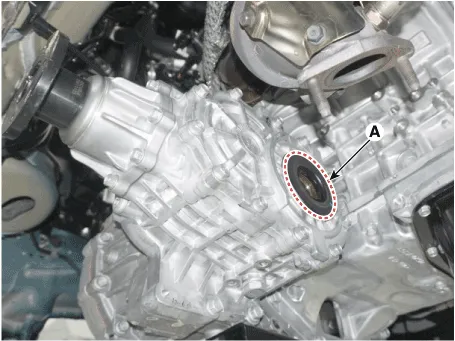

Remove the dust cover (A).
[Diesel 2.2]

Hyundai Palisade. Repair procedures

[Gasoline 3.5, 3.8]

Hyundai Palisade. Repair procedures
6.

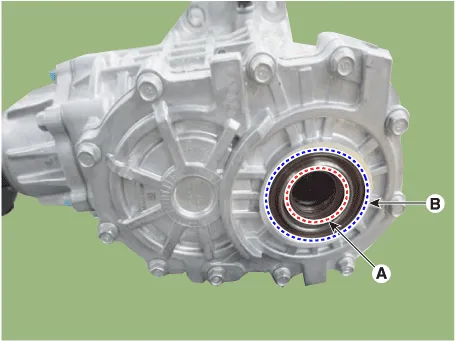

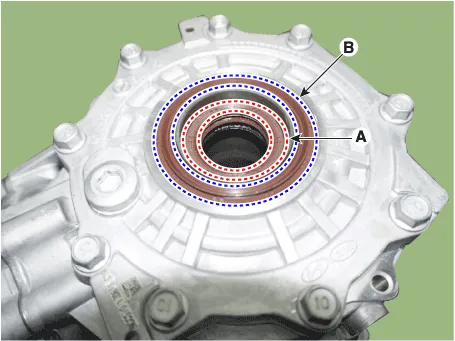

Remove the transfer oil seal (A), (B).
[Diesel 2.2]

Hyundai Palisade. Repair procedures

[Gasoline 3.5, 3.8]

Hyundai Palisade. Repair procedures
7.

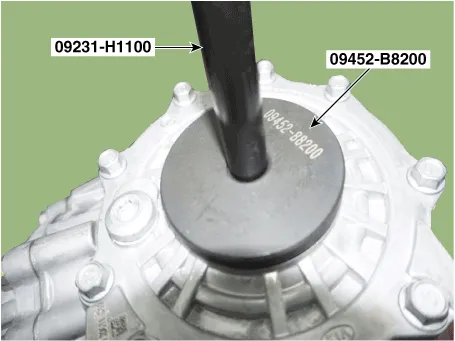

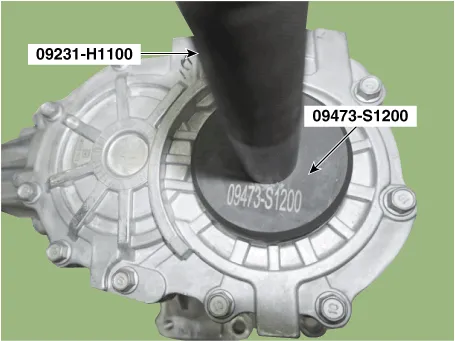

Replace the oil seal with special service tools.
[Diesel 2.2]

Hyundai Palisade. Repair procedures

[Gasoline 3.5, 3.8]

Hyundai Palisade. Repair procedures
8.
Remove the special service tools.
9.
Install the new dust cover.
10.
Install the front muffler. [Gasoline 3.5/ 3.8]
(Refer to Engine Mechanical System - "Muffler")
11.
Install the front driveshaft assembly. [Right side]
(Refer to Driveshaft and axle - "Front Driveshaft")
12.
Install the sub frame. [Gasoline 3.5/ 3.8]
(Refer to Suspension System - "Sub Frame")
13.
Install the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
[Transaxle side oil seal]
1.
Remove the transfer assembly.
(Refer to 4 Wheel Drive (AWD) System - "Front Wheel Transfer Assembly")
2.

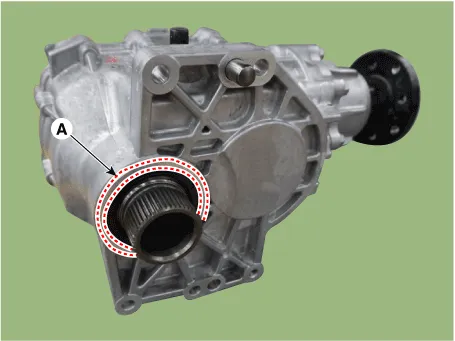

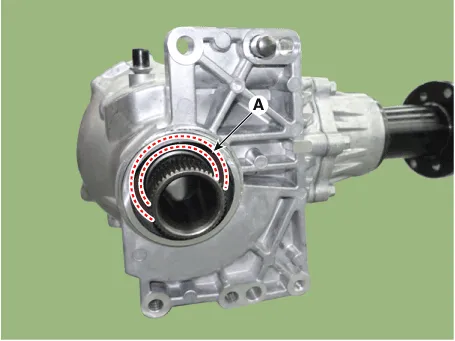

Remove the transfer assembly oil seal (A).
[Diesel 2.2]

Hyundai Palisade. Repair procedures

[Gasoline 3.8]

Hyundai Palisade. Repair procedures
3.

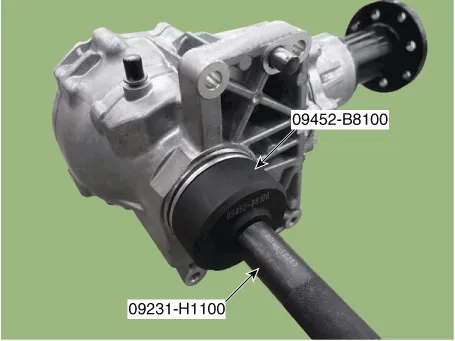

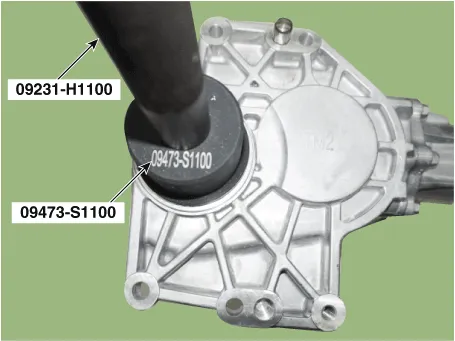

Replace the oil seal with spacial service tools.
[Diesel 2.2]

Hyundai Palisade. Repair procedures

[Gasoline 3.5, 3.8]

Hyundai Palisade. Repair procedures
4.
Remove the special service tools
5.
Install the transfer assembly.
(Refer to 4 Wheel Drive (AWD) System - "Front Wheel Transfer Assembly")
6.
Install the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
