Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.

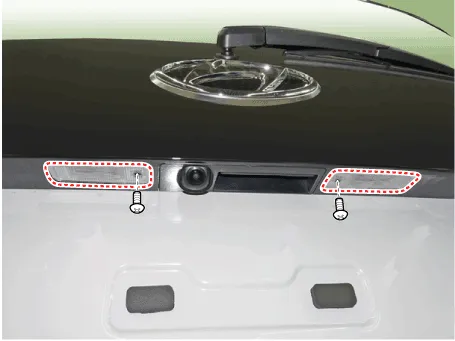

Remove the license lamp lens from the panel after loosening a screw.

Hyundai Palisade. Repair procedures
3.

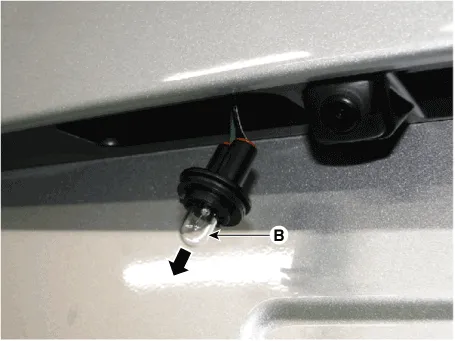

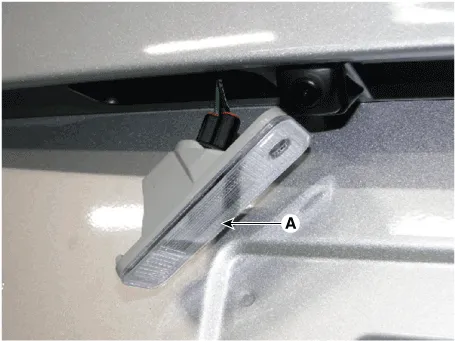

Replace the bulb (B) after removing the license lamp (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
Installation
1.
Install the bulb.
2.
Install the license lamp lens.
