Hyundai Palisade (LX2): Hood / Hood Latch Release Handle

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle

Components and components location

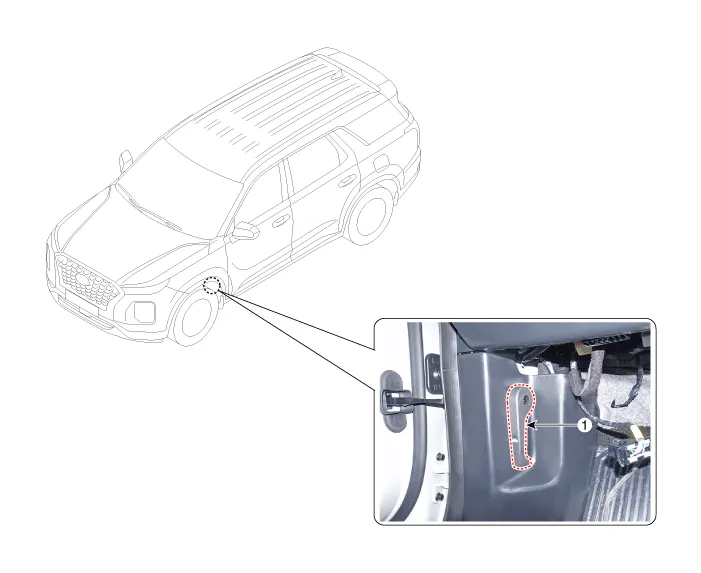

Component Location

Hyundai Palisade. Components and components location

1. Hood latch release handle

Repair procedures

Replacement
1.
After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).

Hyundai Palisade. Repair procedures
2.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the hood latch cable is connected properly.
•
Make sure the hood locks / unlocks and opens / closes properly.
