Hyundai Palisade (LX2): Light bulbs / High Mounted Stop Lamp Bulb Replacement

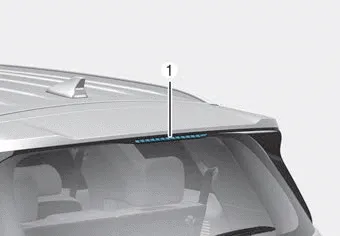

If the LED lamp (1) does not operate, have the system checked by an authorized HYUNDAI dealer.
The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.
A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.
â– Type A (Standard) â– Type B (LED) â– Type A (1) Tail lamp (2) Tail/Stop lamp (3) Turn signal lamp (4) Side marker lamp (5) Backup lamp â– Type B (1) Tail lamp, Side marker (2) Stop lamp (3) Turn signal lamp (4) Side marker lamp (5) Backup lamp (6) Garnish lamp Stop/Tail lamp and turn signal lamp (Type A) 1.
1. Loosen the lens retaining screws with a cross-tip screwdriver. 2. Using a flat-blade screwdriver, gently pry the lens cover from the lamp housing.
