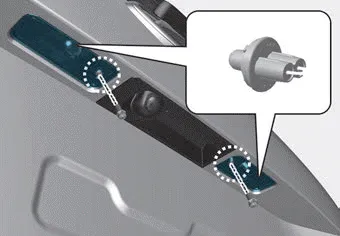

1. Loosen the lens retaining screws with a cross-tip screwdriver.
2. Using a flat-blade screwdriver, gently pry the lens cover from the lamp housing.
3. Remove the socket by turning it counterclockwise.
4. Remove the bulb by pulling it straight out.
5. Install a new bulb.
6. Reinstall in the reverse order.
If the LED lamp (1) does not operate, have the system checked by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated unit.
Map lamp, room lamp, vanity mirror lamp and luggage compartment lamp (Bulb type) â– Map lamp â– Room lamp â– Glove box lamp â– Vanity mirror lamp â– Luggage compartment lamp 1.
Repair procedures Replacement 1. Remove the rear heater & A/C unit. (Refer to Rear Heater - "Rear Heater Unit") 2. Loosen the mounting screws, remove the rear heater & A/C unit cover (A) and evaporator core (B).
Components and components location Components 1. Remote control switch (Audio swtich) 2. Remote control switch (Cruise control switch) Schematic diagrams Circuit Diagram Trip + SCC Repair procedures Removal 1.
