Hyundai Palisade (LX2): Front Seat / Front Seat Shield Outer Cover

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Outer Cover

Components and components location

Component Location

Hyundai Palisade. Components and components location

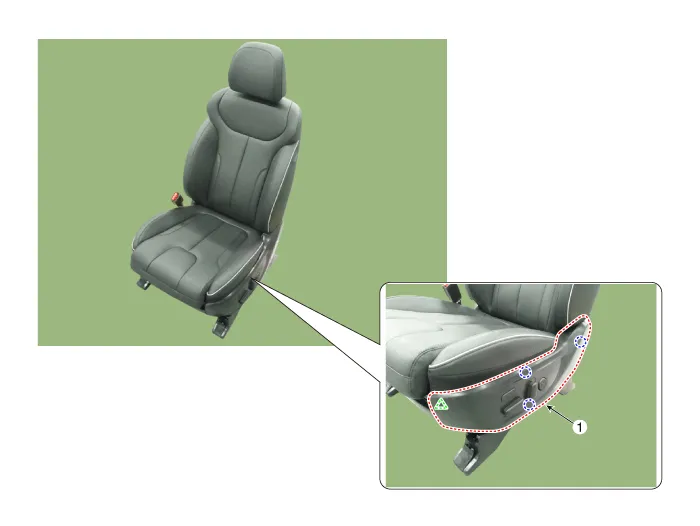

1. Front seat shield outer cover

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

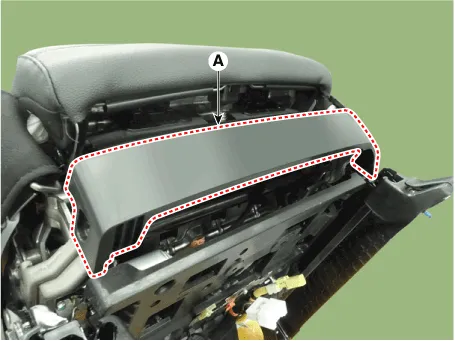

Loosen the mounting screws and remove the front seat shield front cover (A).

Hyundai Palisade. Repair procedures
3.

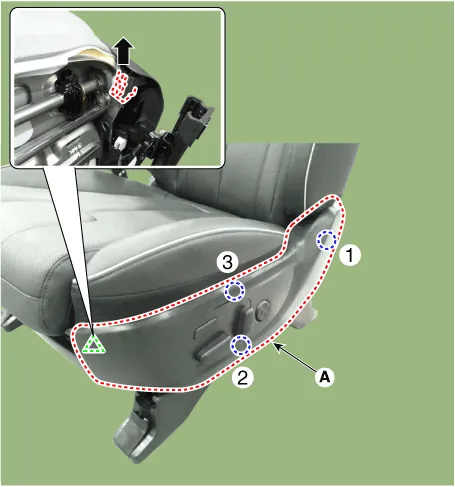

Remove the front seat outer shield cover.
1)
Using a screwdriver or remover and remove the rear hook â‘ .
2)
Remove the lower hook â‘¡ by pulling it aside
3)
Remove the upper steel clip â‘¡ and the hook â‘¢ by pulling them aside.
4)
Remove the front seat outer shield cover (A) by pulling it forward as shown by the arrow.
Hyundai Palisade. Repair procedures
•
Front Seat Outer Shield When removing the cover, pay attention to the removal order and direction.
•
Be careful not to damage the hooks and brackets.

Hyundai Palisade. Repair procedures
4.

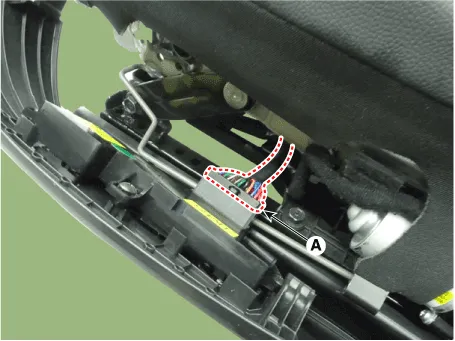

Press the lock pin and separate the front seat power switch connector (A).

Hyundai Palisade. Repair procedures
5.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).
