Components and components location

Component Location

Hyundai Palisade. Components and components location

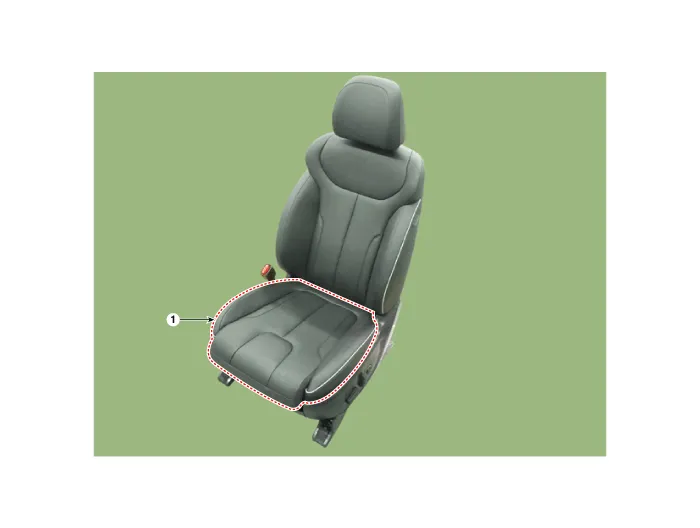

1. Front seat cushion cover

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the front seat shield outer cover.
(Refer to Front Seat - "Front Seat Outer Shield Cover")
3.
Remove the front seat shield inner cover.
(Refer to Front Seat - "Front Seat Inner Shield Cover")
4.

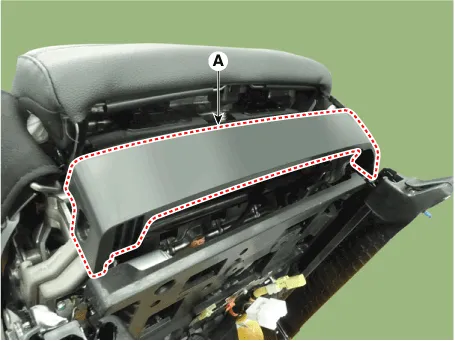

Loosen the mounting screws and remove the front seat shield front cover (A).

Hyundai Palisade. Repair procedures
5.

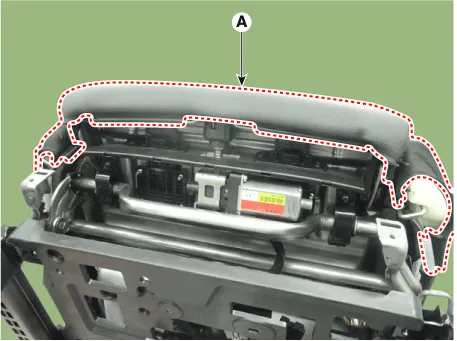

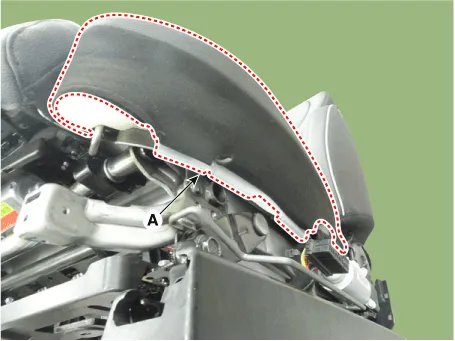

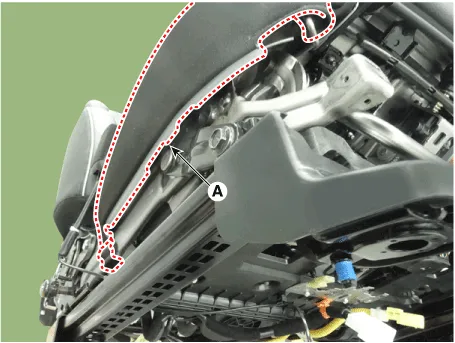

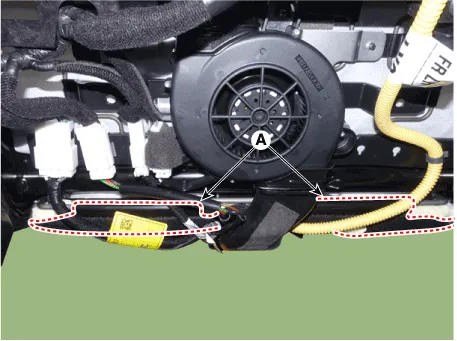

Remove the protector (A) from the front seat cushion frame.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
6.

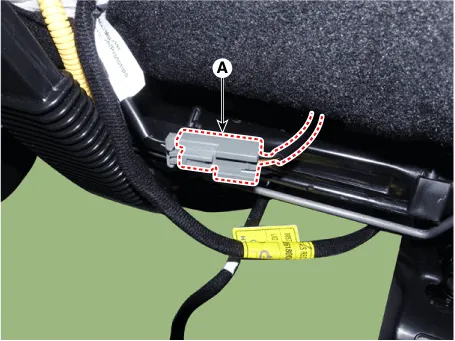

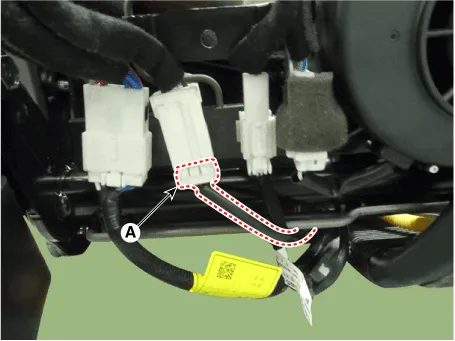

Press the lock pin and separate the front seat cushion connectors (A) and remove the front seat cushion cover.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
7.

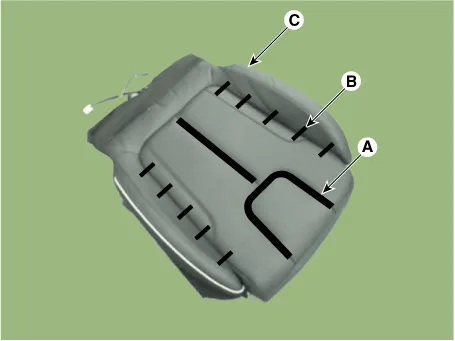

Remove the velcro tape (A) and hog-ring clips (B) inside the front seat back cover and remove the seat back cover (C).

Hyundai Palisade. Repair procedures
8.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure that the connectors are connected completely
•
Replace any damaged clips (or pin-type retainers).
