Hyundai Palisade (LX2): Front Seat Belt / Front Seat Belt Pretensioner

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Pretensioner

Components and components location

Component Location

Hyundai Palisade. Components and components location

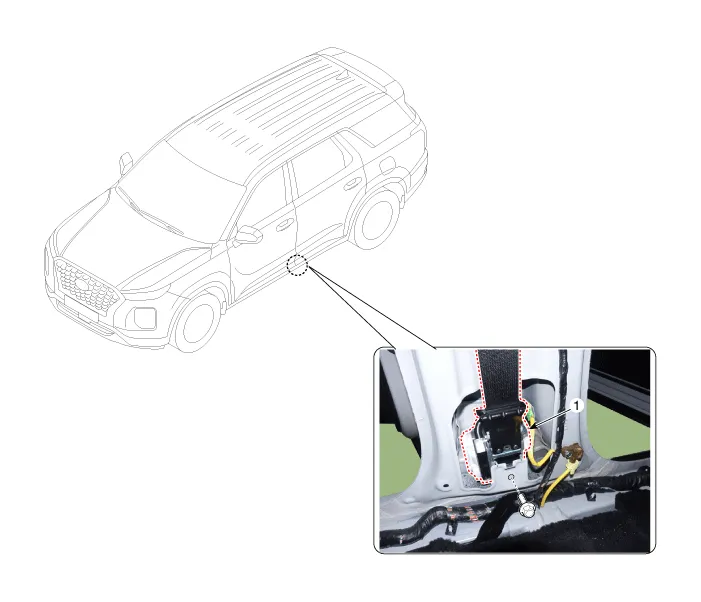

1. Front seat belt pretensioner

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
3.

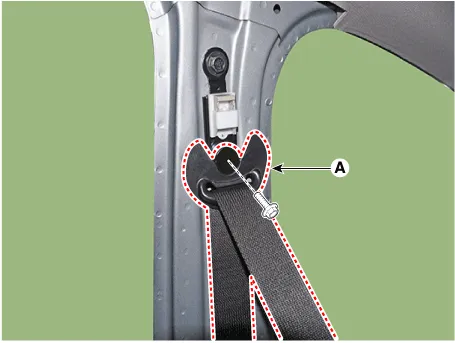

Loosen the mounting bolt and remove the front seat belt upper anchor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures
4.

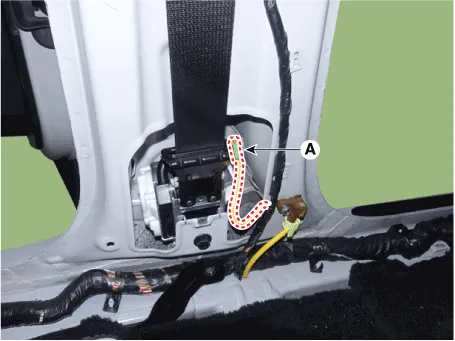

Press the lock pin and separate the front seat belt pretensioner connector (A).

Hyundai Palisade. Repair procedures
5.

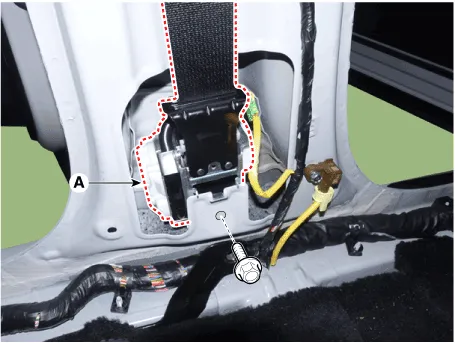

Loosen the mounting bolt and remove the front seat belt pretensioner (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures
6.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.
•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).
