Hyundai Palisade (LX2): Timing System / Front Oil Seal

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Mechanical System / Timing System / Front Oil Seal

Repair procedures

Removal
Hyundai Palisade. Repair procedures
•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Remove the crankshaft damper pulley.
(Refer to Timing System - "Crankshaft Damper Pulley")
2.

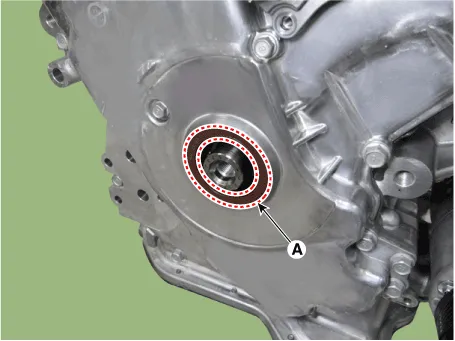

Remove the front oil seal (A).

Hyundai Palisade. Repair procedures
Installation
1.

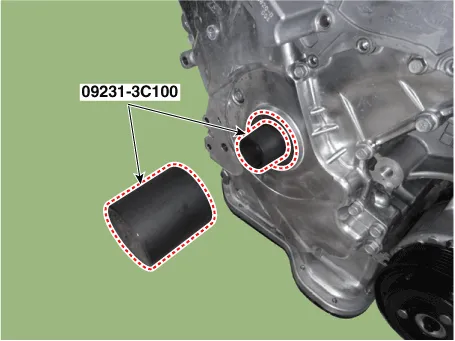

Using SST(09231-3C100), install front oil seal.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
•
Always use new oil seal.
2.
Install the crankshaft damper pulley.
(Refer to Timing System - "Crankshaft Damper Pulley")
