Hyundai Palisade (LX2): Timing System / Crankshaft Damper Pulley

Hyundai Palisade (LX2) 2020-2025 Service Manual / Engine Mechanical System / Timing System / Crankshaft Damper Pulley

Repair procedures

Removal and Installation
Hyundai Palisade. Repair procedures
•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
2.
Remove the RH side front wheel.
(Refer to Suspension System - "Wheel")
3.
Remove the drive belt.
(Refer to Timing System - "Drive Belt")
4.

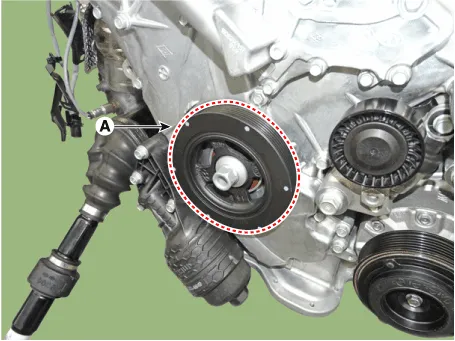

Remove the crankshaft damper pulley (A).
Tightening torque :
421.7 - 431.5 N.m (43.0 - 44.0 kgf.m, 311.0 - 318.3 lb.ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
There are two methods to hold the ring gear when installing or removing the crankshaft damper pulley.
•

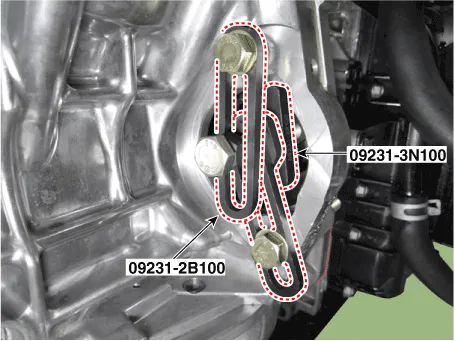

Install the SSTs (09231-2B100, 09231-3N100) to hold the ring gear after removing the starter.

Hyundai Palisade. Repair procedures
•
Install the SSTs (09231-3D100, 09231-2W100) to hold the ring gear after removing the dust cover.
1)
Remove the front muffler. [2WD type]
(Refer to Intake and Exhaust System - "Muffler")
2)

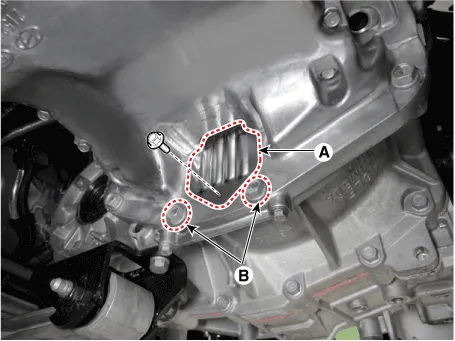

Remove the dust cover (A) on the bottom of the upper oil pan and unfasten the two transaxle mounting bolts (B).

Hyundai Palisade. Repair procedures
3)

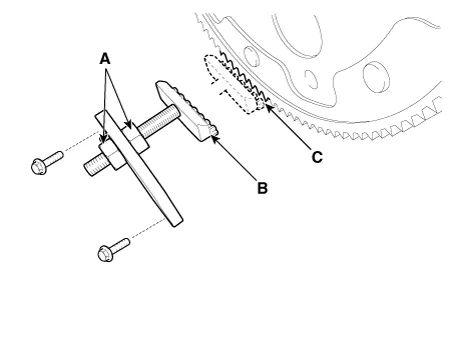

Adjust the length of the holder nuts (A) so that the front place of the holder (B) matches with the ring gear (C) tooth pattern.
4)
Fasten the two transaxle mounting bolts in the original mounted holes.

Hyundai Palisade. Repair procedures
5)

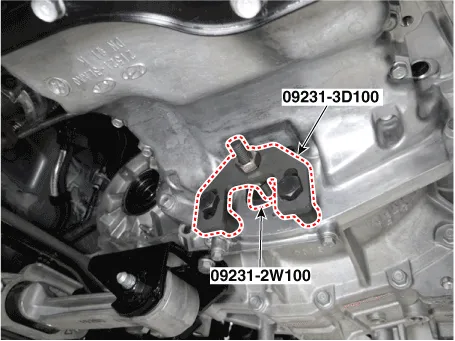

Install the SSTs (09231-3D100, 09231-2W100) using the two mounting bolts. Tighten the bolts and nuts of the holder securely.

Hyundai Palisade. Repair procedures
5.
Install in the reverse order of removal.
